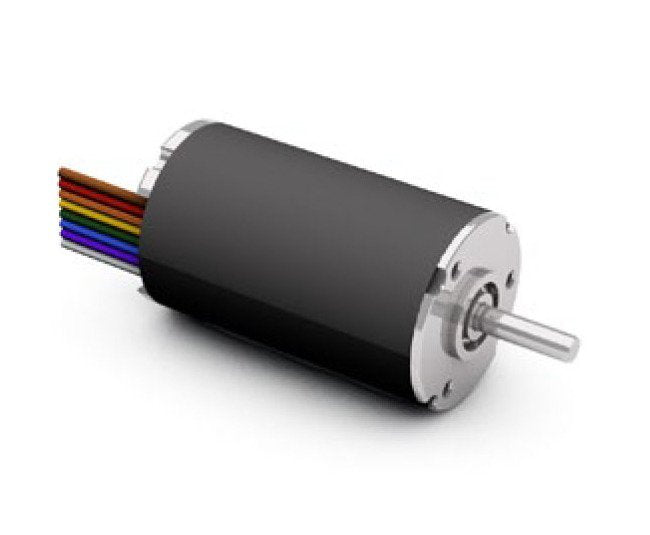

Dunkermotoren BG Series 0.96A Brushless DC Motor with Hall Sensors
Dunkermotoren BG Series 0.96A Brushless DC Motor with Hall Sensors
SKU:BGS-9f7509
Powerful and reliable BG Series Brushless DC Motor with Hall Sensors for precision control and durability.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
Dunkermotoren BG Series 0.96A Brushless DC Motor with Hall Sensors
$199.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series 0.96A Brushless DC Motor with Hall Sensors
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors offers exceptional performance and reliability. With a nominal output power of 16.00W and nominal current of 0.96A, this motor ensures high efficiency, low noise levels, and weight-optimized design. Featuring rare earth magnets, hall sensors for rotor position detection, and a no-cogging torque/coreless design, it excels in applications requiring precision control and durability. Perfect for both consumer and institutional buyers seeking long-lasting, high-performance motors.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.Connection via ribbon cable - Optionally, the motors are also available with flying plugs
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsPremium efficiencyVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
25 W
Technical Specs Demagnetisation Current
⥠7 A
Technical Specs Feedback Integrated
18 cycles/rev
Technical Specs Industry Standardscertifications
Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
119 W
Technical Specs Maximum Torque
0.146 N·m
Technical Specs Nominal Current
0.96 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Nominal Output Power
16.00 W
Technical Specs Nominal Speed
8.820 rpm
Technical Specs Nominal Torque
0.0174 N·m
Technical Specs Note For Demagnetisation Current
ÏR = 20ºC
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Current
ÏR = 20ºC
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Starting Current
ÏR = 20ºC
Technical Specs Note For Terminal Inductance
Only for hall version
Technical Specs Note For Terminal Resistance
Only for hall version
Technical Specs Note For Torque Constant
Only for hall version
Technical Specs No Load Current
0.150 A
Technical Specs No Load Speed
10700 rpm
Technical Specs Peak Power
236 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP40)
Technical Specs Rotor Inertia
15 g/cm²
Technical Specs Stall Torque
0.107 N·m
Technical Specs Starting Current
5.20 A
Technical Specs Terminal Inductance
186 µH
Technical Specs Terminal Resistance
4.6 Ω
Technical Specs Torque Constant
0.022 N·mA-1
Technical Specs Weight Of Motor
0.065 kg
