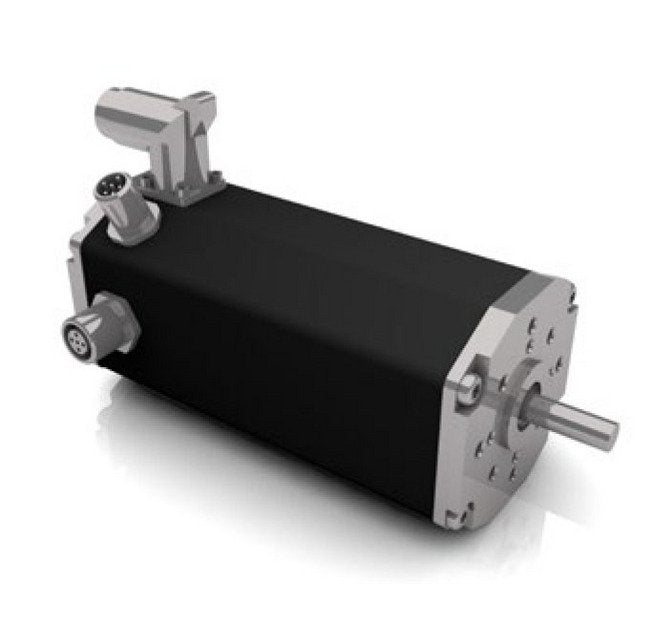

Dunkermotoren BG Series 10A/187W Brushless DC Motor
Dunkermotoren BG Series 10A/187W Brushless DC Motor
SKU:BGS-207978
High-performance Dunkermotoren Brushless DC Motor for precise control in industrial applications
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Dunkermotoren BG Series 10A/187W Brushless DC Motor
$349.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series 10A/187W Brushless DC Motor
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series 10 Ampere/187 Watt Brushless DC Motor with Integrated Control Electronics offers precise speed, positioning, and current control to meet the demands of industrial applications. It features high IP protection, overload protection, and compatibility with encoders, brakes, and gearboxes. This motor complies with China Quality Certification (CQC), European Conformity (CE), and Underwriters Laboratories (UL) standards, making it a reliable choice for government and institutional buyers.
Product Specifications
Features Features
Speed- positioning- and current control operationCan be combined with high resolution encoders, brakes and gearboxes in the modular systemControl through bus or I/Os or stand-alone operationHigh IP protection against water or contaminationInherent overload protectionProgrammable with Motion CodeMonitoring with Smart DiagnosticsCANopen version availableRS485 version availableIO modeSpeed modeCurrent modePositioningBlock commutationDigital inputs configurableAnalog inputsDigital outputsBrake outputProgrammableService interfaceOscilloscope softwareSmart DiagnosticsDigital labelBallast circuitHigh efficiencyOperating hoursVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
195 W
Technical Specs Direct Current Dc Voltage Range
2 to 58 V
Technical Specs Feedback Integrated
30 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
367 W
Technical Specs Maximum Torque
1.57 N·m
Technical Specs Nominal Current
10 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Nominal Output Power
187 W
Technical Specs Nominal Speed
3650 rpm
Technical Specs Nominal Torque
0.49 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Peak Current Consumption
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
6250 rpm
Technical Specs Peak Current Consumption
23.4 A
Technical Specs Peak Power
391 W
Technical Specs Phase Peak Current
40000 mA
Technical Specs Product Availability
Standard Product
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
172 g/cm²
Technical Specs Torque Constant
0.066 N·mA-1
Technical Specs Weight Of Motor
2 kg
