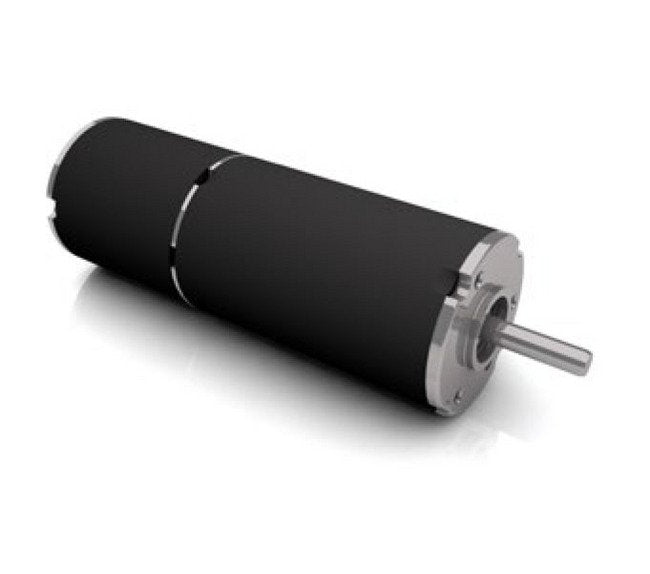

Dunkermotoren BG Series 2.12A 18W Brushless DC Motor
Dunkermotoren BG Series 2.12A 18W Brushless DC Motor
SKU:BGS-feaa34
High-performance Dunkermotoren BG Series Brushless DC Motor with Integrated Commutation for reliable and efficient operation.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Dunkermotoren BG Series 2.12A 18W Brushless DC Motor
$299.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series 2.12A 18W Brushless DC Motor
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series Brushless DC Motor with Integrated Commutation is a high-performance 3-phase motor ideal for a range of applications. Featuring rare earth magnets and advanced commutation electronics, this motor delivers exceptional power density, overload capability, and efficiency. With precise control options and industry-leading technology, it offers maintenance-free operation and a long lifespan. Designed for optimized performance and durability, the motor is suitable for demanding institutional and government procurement needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.Alternatively, these motors are also available with integrated speed and positioning electronics (see dMove and dPro)Particularly smooth running is the motor BGA 22No cogging torque/ coreless designLow noise levelThis motor is on request available in different voltage versions
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsSpeed set input (6-wire version)Bipolar (3-wire version)Block commutationDigital inputsDigital outputsAnalog inputsPremium efficiencyVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
24 W
Technical Specs Feedback Integrated
18 cycles/rev
Technical Specs Industry Standardscertifications
Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
132 W
Technical Specs Nominal Current
2.12 A
Technical Specs Nominal Direct Current Dc Voltage
12 V
Technical Specs Nominal Output Power
18.00 W
Technical Specs Nominal Speed
8940 rpm
Technical Specs Nominal Torque
0.0193 N·m
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Torque Constant
Only for hall version
Technical Specs No Load Speed
11030 rpm
Technical Specs Peak Current
8 A
Technical Specs Peak Power
236 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP40)
Technical Specs Rotor Inertia
15 g/cm²
Technical Specs Stall Torque
0.072 N·m
Technical Specs Torque Constant
0.0105 N·mA-1
Technical Specs Weight Of Motor
0.065 kg
