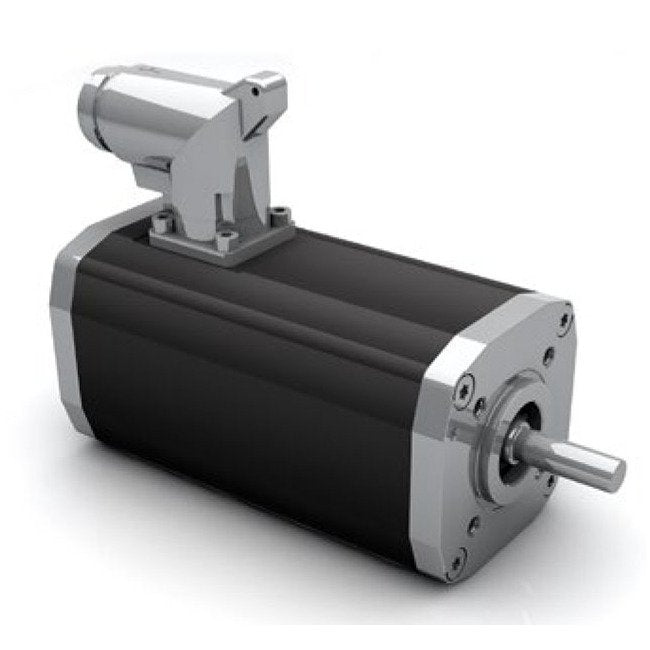

Dunkermotoren BG Series 2.5A/45W Brushless DC Motor with Integrated Control
Dunkermotoren BG Series 2.5A/45W Brushless DC Motor with Integrated Control
SKU:BGS-872ede
Experience precision and power with Dunkermotoren's BG Series 2.5A/45W Brushless DC Motor for reliable performance.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Dunkermotoren BG Series 2.5A/45W Brushless DC Motor with Integrated Control
$299.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series 2.5A/45W Brushless DC Motor with Integrated Control
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series 2.5 Ampere Brushless DC Motor delivers exceptional performance with a nominal output power of 45 Watts. Integrated with advanced control electronics, this motor offers precise speed control through analog or digital inputs. Designed with industry-leading features like high IP protection, overload protection, and programmability, it ensures reliable and efficient operation. Compliant with China Quality Certification, CE, and UL standards, this motor is ideal for applications requiring superior quality and performance.
Product Specifications
Features Features
Speed- positioning- and current control operationCan be combined with high resolution encoders, brakes and gearboxes in the modular systemControl through bus or I/Os or stand-alone operationHigh IP protection against water or contaminationInherent overload protectionProgrammable with Motion CodeMonitoring with Smart DiagnosticsIO modeSpeed modeBlock commutationDigital inputsAnalog inputsDigital outputsService interfaceOscilloscope software availablePremium efficiencyOperating hoursVibration resistanceEPLAN Data Portal
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
74 W
Technical Specs Direct Current Dc Voltage Range
10 to 50 V
Technical Specs Feedback Integrated
24 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
69 W
Technical Specs Maximum Torque
0.622 N·m
Technical Specs Nominal Current
2.50 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Nominal Output Power
45 W
Technical Specs Nominal Speed
3230 rpm
Technical Specs Nominal Torque
0.132 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Peak Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
4233 rpm
Technical Specs Peak Current
15 A
Technical Specs Peak Power
122 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
24 g/cm²
Technical Specs Torque Constant
0.048 N·mA-1
Technical Specs Weight Of Motor
0.44 kg
