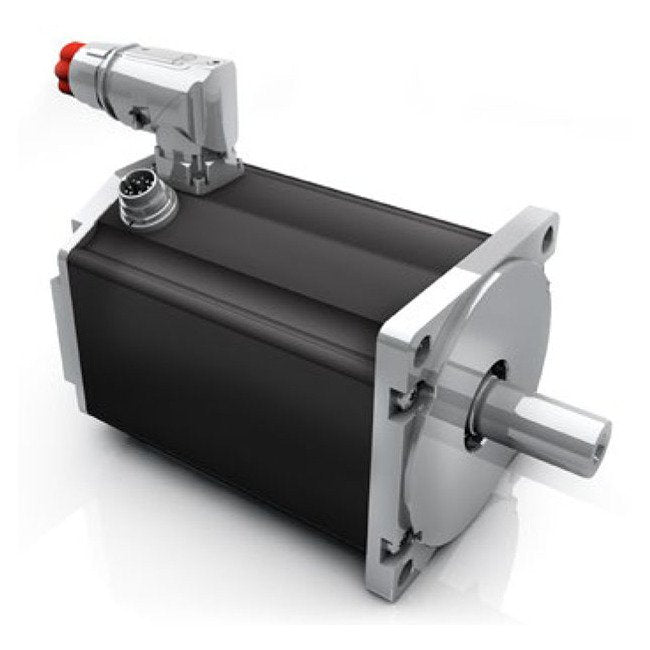

Dunkermotoren BG Series 2.5A Brushless DC Motor with Integrated Hall Sensors
Dunkermotoren BG Series 2.5A Brushless DC Motor with Integrated Hall Sensors
SKU:BGS-ce088b
Experience efficiency and reliability with Dunkermotoren's BG Series Brushless DC Motor.
Regular price
$549.99
Regular price
Sale price
$549.99
Unit price
per
Initiate Order
Dunkermotoren BG Series 2.5A Brushless DC Motor with Integrated Hall Sensors
$549.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series 2.5A Brushless DC Motor with Integrated Hall Sensors
$549.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series Brushless DC Motors offer high efficiency and dynamic acceleration, with a nominal output power of 710W. Noteworthy for their robust design, premium efficiency, and maintenance-free operation, these motors also comply with industry standards such as China Quality Certification and Underwriters Laboratories. Combining long lifetime, wide speed range, and high overload capability, Dunkermotoren motors provide a reliable and adaptable solution for various applications in both consumer and institutional sectors.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsPremium efficiencyVibration resistanceEPLAN Data Portal
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
1100 W
Technical Specs Demagnetisation Current
⥠10 A
Technical Specs Feedback Integrated
24 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
2468 W
Technical Specs Maximum Torque
5.95 N·m
Technical Specs Nominal Current
2.50 A
Technical Specs Nominal Direct Current Dc Voltage
325 V
Technical Specs Nominal Output Power
710 W
Technical Specs Nominal Speed
3940 rpm
Technical Specs Nominal Torque
1.72 N·m
Technical Specs Note For Demagnetisation Current
ÏR = 20ºC
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Current
ÏR = 20ºC
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Starting Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Current
0.22 A
Technical Specs No Load Speed
4310 rpm
Technical Specs Optional Feedback Integrated
4096 cycles/rev
Technical Specs Peak Power
4400 W
Technical Specs Product Availability
Standard Product
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
950 g/cm²
Technical Specs Stall Torque
22.1 N·m
Technical Specs Starting Current
80.7 A
Technical Specs Terminal Inductance
12.9 mH
Technical Specs Terminal Resistance
4.03 Ω
Technical Specs Torque Constant
0.75 N·mA-1
Technical Specs Weight Of Motor
3.5 kg
