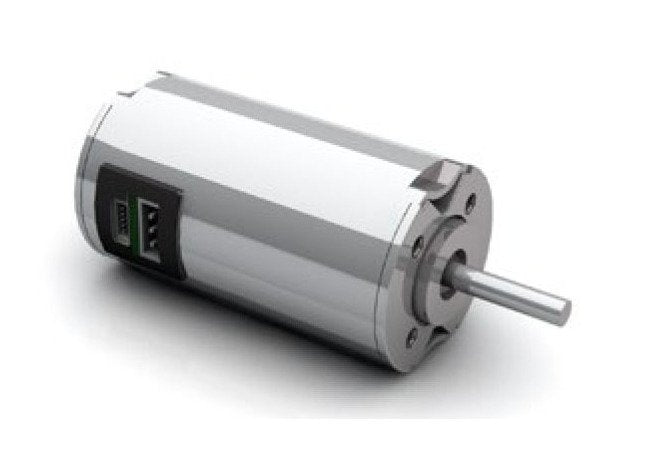

Dunkermotoren BG Series 2.6A BLDC Motor - Integrated Commutation
Dunkermotoren BG Series 2.6A BLDC Motor - Integrated Commutation
SKU:BGS-29a768
Powerful and efficient BG Series BLDC Motor with integrated commutation for high-performance solutions.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Dunkermotoren BG Series 2.6A BLDC Motor - Integrated Commutation
$129.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series 2.6A BLDC Motor - Integrated Commutation
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience exceptional performance with the Dunkermotoren BG Series Brushless Direct Current (DC) Motor. This highly dynamic 3-phase motor features a neodymium magnet and integrated commutation electronics for seamless operation. Offering a nominal current of 2.6A and a nominal output power of 19.76W, this motor ensures high efficiency, optimized control characteristics, and a maintenance-free design. With compliance to Underwriters Laboratories (UL) standards and premium efficiency, it's the ideal choice for industrial applications.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.Alternatively, these motors are also available with integrated speed and positioning electronics (see dMove and dPro)Particularly smooth running is the motor BGA 22No cogging torque/ coreless designLow noise levelThis motor is on request available in different voltage versions
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsSpeed set input (6-wire version)Bipolar (3-wire version)Block commutationDigital inputsDigital outputsAnalog inputsPremium efficiencyVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
20 W
Technical Specs Feedback Integrated
24 cycles/rev
Technical Specs Industry Standardscertifications
Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
30.5 W
Technical Specs Nominal Current
2.6 A
Technical Specs Nominal Direct Current Dc Voltage
12 V
Technical Specs Nominal Output Power
19.76 W
Technical Specs Nominal Speed
4320 rpm
Technical Specs Nominal Torque
0.0437 N·m
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
5560 rpm
Technical Specs Peak Current
9.0 A
Technical Specs Peak Power
30.5 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP40)
Technical Specs Rotor Inertia
10.2 g/cm²
Technical Specs Stall Torque
0.1270 N·m
Technical Specs Torque Constant
0.0249 N·mA-1
Technical Specs Weight Of Motor
0.20 kg
