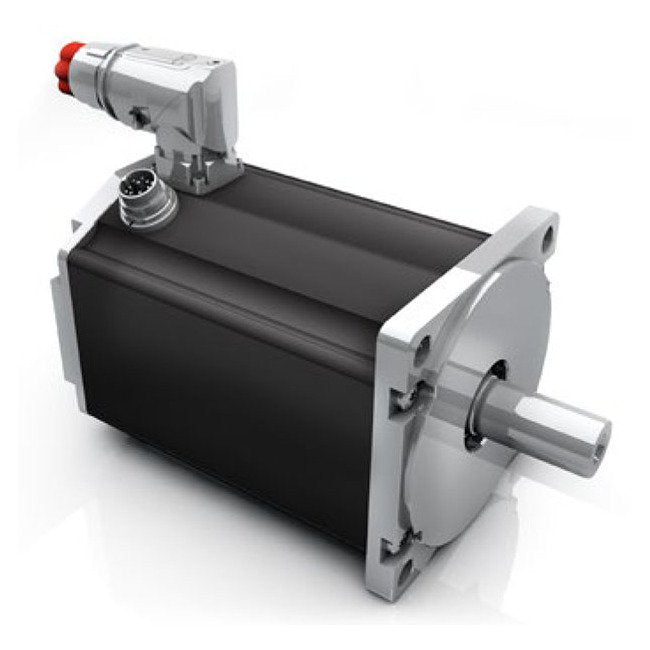

Dunkermotoren BG Series 20A Brushless DC Motor with Hall Sensors
Dunkermotoren BG Series 20A Brushless DC Motor with Hall Sensors
SKU:BGS-9b8496
Experience unmatched performance with our Dunkermotoren BG Series 20A Brushless DC Motor - efficient, reliable, and precise for dynamic applications.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Dunkermotoren BG Series 20A Brushless DC Motor with Hall Sensors
$599.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series 20A Brushless DC Motor with Hall Sensors
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series 20 Ampere Brushless DC Motor with 1042 Watt Output Power is a high-performance, efficient motor designed for dynamic acceleration and precise control. With integrated Hall sensors for rotor position detection, this motor offers flexibility in voltage options and optional redundant encoders for enhanced safety measures. Meeting IP65 Ingress Protection standards, it guarantees long-term reliability and durability in various industrial applications, making it a preferred choice for institutions seeking quality and performance.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsPremium efficiencyVibration resistanceEPLAN Data Portal
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
1100 W
Technical Specs Feedback Integrated
24 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
2969 W
Technical Specs Maximum Torque
10.5 N·m
Technical Specs Nominal Current
20 A
Technical Specs Nominal Direct Current Dc Voltage
60 V
Technical Specs Nominal Output Power
1042 W
Technical Specs Nominal Speed
3829 rpm
Technical Specs Nominal Torque
2.6 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Direct Current Dc Voltage
Preliminary data
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
4138 rpm
Technical Specs Optional Feedback Integrated
4096 cycles/rev
Technical Specs Peak Power
4400 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
1890 g/cm²
Technical Specs Stall Torque
8.08 N·m
Technical Specs Torque Constant
0.0916 N·mA-1
Technical Specs Weight Of Motor
5.1 kg
