Dunkermotoren BG Series 20A Brushless DC Motor with Integrated Control
Dunkermotoren BG Series 20A Brushless DC Motor with Integrated Control
SKU:BGS-99986e
High-precision Dunkermotoren BG Series 20A Brushless DC Motor for accurate and efficient control.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Dunkermotoren BG Series 20A Brushless DC Motor with Integrated Control
$599.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series 20A Brushless DC Motor with Integrated Control
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

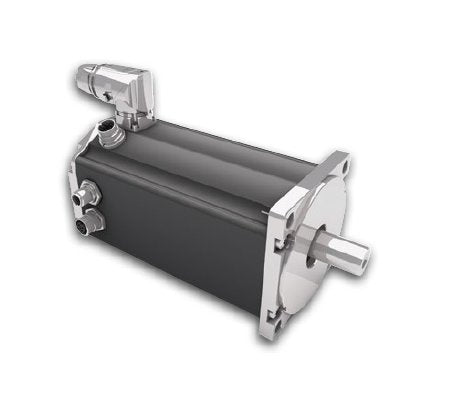

The Dunkermotoren BG Series Brushless DC Motor with Integrated Control Electronics is a high-performance motor designed for precise control in various applications. With a nominal current of 20A and a nominal output power of 876W, this motor offers exceptional accuracy and control characteristics. Featuring a 4Q servo controller and a magnetic encoder with 4096 cpr resolution, it ensures high position accuracy and smooth operation. The motor supports vector control with freely programmable options and galvanically insulated power and logic supply for added safety.
Product Specifications
Features Features
Speed- positioning- and current control operationCan be combined with high resolution encoders, brakes and gearboxes in the modular systemControl through bus or I/Os or stand-alone operationHigh IP protection against water or contaminationInherent overload protectionProgrammable with Motion CodeMonitoring with Smart DiagnosticsCANopen version availableIO modeSpeed modeCurrent modePositioningBlock commutationDigital inputs configurableAnalog inputsDigital outputsBrake outputProgrammableService interfaceOscilloscope softwareSmart DiagnosticsDigital labelBallast circuitHigh efficiencyOperating hoursVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
1100 W
Technical Specs Direct Current Dc Voltage Range
5 to 66 V
Technical Specs Feedback Integrated
4096 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
2268 W
Technical Specs Maximum Torque
8.13 N·m
Technical Specs Nominal Current
20 A
Technical Specs Nominal Direct Current Dc Voltage
48 V
Technical Specs Nominal Output Power
876 W
Technical Specs Nominal Speed
3910 rpm
Technical Specs Nominal Torque
2.14 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Peak Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
3960 rpm
Technical Specs Peak Current
62 A
Technical Specs Peak Power
4400 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
950 g/cm²
Technical Specs Torque Constant
0.114 N·mA-1
Technical Specs Weight Of Motor
3.5 kg
