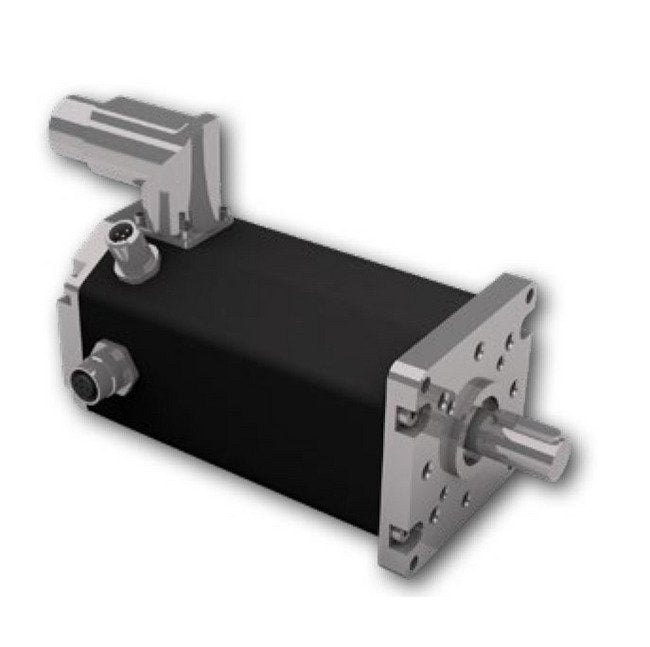

Dunkermotoren BG Series 25.12A Brushless DC Motor with Integrated Control Electronics
Dunkermotoren BG Series 25.12A Brushless DC Motor with Integrated Control Electronics
SKU:BGS-dc6ced
High-precision Dunkermotoren BG Series Brushless DC Motor with Integrated Control Electronics for accurate control applications.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Dunkermotoren BG Series 25.12A Brushless DC Motor with Integrated Control Electronics
$349.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series 25.12A Brushless DC Motor with Integrated Control Electronics
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series 25.12 Ampere Brushless DC Motor with 251 Watt Nominal Output Power is a high-performance motor designed for precise control applications. Featuring CANopen connectivity and standalone operation capability, it comes with integrated 4Q servo control and a field-oriented control system for superior accuracy. With a resolution of 4096 cpr, this motor offers excellent control characteristics. It is programmable, offers high IP protection, and comes with inherent overload protection. Compliant with IP65 standards, CE, UL, and CQC certifications, it meets industry requirements for quality and performance.
Product Specifications
Features Features
Speed- positioning- and current control operationCan be combined with high resolution encoders, brakes and gearboxes in the modular systemControl through bus or I/Os or stand-alone operationHigh IP protection against water or contaminationInherent overload protectionProgrammable with Motion CodeMonitoring with Smart DiagnosticsCANopen version availableIO modeSpeed modeCurrent modePositioningDigital inputs configurableAnalog inputsDigital outputsBrake outputProgrammableService interfaceOscilloscope softwareSmart DiagnosticsDigital labelVibration resistanceBallast circuitHigh efficiencySinusoidal vector controlS-RampeInterpolationSSI version availableSafe torque off version availableOperating hours
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
560 W
Technical Specs Direct Current Dc Voltage Range
3 to 58 V
Technical Specs Feedback Integrated
4096 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
363 W
Technical Specs Maximum Torque
1.36 N·m
Technical Specs Nominal Current
25.12 A
Technical Specs Nominal Direct Current Dc Voltage
12 V
Technical Specs Nominal Output Power
251 W
Technical Specs Nominal Speed
3640 rpm
Technical Specs Nominal Torque
0.658 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Direct Current Dc Voltage
Preliminary data
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Peak Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
4450 rpm
Technical Specs Peak Current
40.9 A
Technical Specs Peak Power
1700 W
Technical Specs Product Availability
On Request
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
240 g/cm²
Technical Specs Torque Constant
0.033 N·mA-1
Technical Specs Weight Of Motor
1.6 kg
