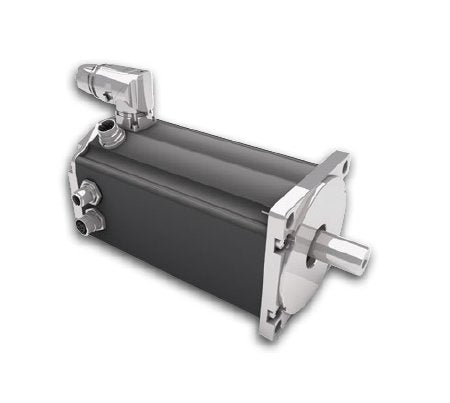

Dunkermotoren BG Series 25A Brushless DC Motor
Dunkermotoren BG Series 25A Brushless DC Motor
SKU:BGS-58c8ea
Enhance control and precision with Dunkermotoren's BG Series 25A Brushless DC Motor. Compliant with CQC, CE, and UL standards.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Dunkermotoren BG Series 25A Brushless DC Motor
$699.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series 25A Brushless DC Motor
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series 25A Brushless DC Motor with Integrated Control Electronics offers precise speed, positioning, and current control operations. With a nominal output power of 1370W and maximum torque of 14.5 Nm, this motor ensures high efficiency and reliability. It features programmable functionalities, smart diagnostics, and high IP protection. Compliant with China Quality Certification (CQC), European Conformity (CE), and Underwriters Laboratories (UL) standards, this motor meets rigorous industry requirements for quality and performance.
Product Specifications
Features Features
Speed- positioning- and current control operationCan be combined with high resolution encoders, brakes and gearboxes in the modular systemControl through bus or I/Os or stand-alone operationHigh IP protection against water or contaminationInherent overload protectionProgrammable with Motion CodeMonitoring with Smart DiagnosticsCANopen version availableIO modeSpeed modeCurrent modePositioningBlock commutationDigital inputs configurableAnalog inputsDigital outputsBrake outputProgrammableService interfaceOscilloscope softwareSmart DiagnosticsDigital labelBallast circuitHigh efficiencyOperating hoursVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
1100 W
Technical Specs Direct Current Dc Voltage Range
5 to 86 V
Technical Specs Feedback Integrated
4096 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
4400 W
Technical Specs Maximum Torque
14.5 N·m
Technical Specs Nominal Current
25 A
Technical Specs Nominal Direct Current Dc Voltage
60 V
Technical Specs Nominal Output Power
1370 W
Technical Specs Nominal Speed
3900 rpm
Technical Specs Nominal Torque
3.5 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Direct Current Dc Voltage
Preliminary Data, Minimum Quantity - 250 Pieces
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Peak Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
4200 rpm
Technical Specs Peak Current
97 A
Technical Specs Peak Power
4400 W
Technical Specs Product Availability
On Request
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
2830 g/cm²
Technical Specs Torque Constant
0.12 N·mA-1
Technical Specs Weight Of Motor
6.7 kg
