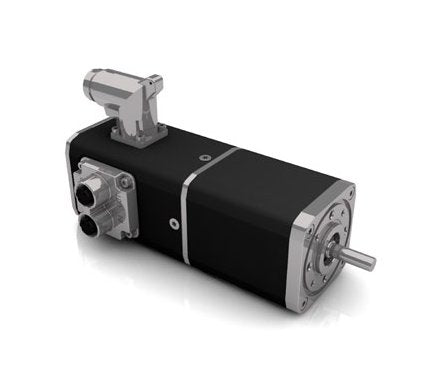

The Dunkermotoren BG Series 25 Amp Brushless DC Motor with 1370W Output Power is a high-performance motor with integrated control electronics. It offers precise speed, positioning, and current control, along with compatibility with high-resolution encoders, brakes, and gearboxes. With IP65 protection, overload protection, and Smart Diagnostics, this motor ensures reliability and efficiency. Available in Profinet, EtherCAT, and EtherNet/IP versions, it meets rigorous industry standards like CQC, CE, and UL, making it ideal for institutional and government applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
Speed- positioning- and current control operationCan be combined with high resolution encoders, brakes and gearboxes in the modular systemControl through bus or I/Os or stand-alone operationHigh IP protection against water or contaminationInherent overload protectionProgrammable with Motion CodeMonitoring with Smart DiagnosticsProfinet version availableEtherCAT version availableEtherNet/IP version availableIO modeSpeed modeCurrent modePositioningDigital inputs configurableAnalog inputsDigital outputsBrake outputProgrammableService interfaceOscilloscope softwareSmart DiagnosticsDigital labelOperating hoursHigh efficiencySinusoidal vector controlInterpolationSSI version availableSafe torque off versionS-RampeOperating hours
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
1100 W
Technical Specs Direct Current Dc Voltage Range
5 to 86 V
Technical Specs Feedback Integrated
4096 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
4400 W
Technical Specs Maximum Torque
14.5 N·m
Technical Specs Nominal Current
25 A
Technical Specs Nominal Direct Current Dc Voltage
60 V
Technical Specs Nominal Output Power
1370 W
Technical Specs Nominal Speed
3900 rpm
Technical Specs Nominal Torque
3.5 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Direct Current Dc Voltage
Preliminary data
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Peak Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
4200 rpm
Technical Specs Peak Current
97 A
Technical Specs Peak Power
4400 W
Technical Specs Product Availability
On Request
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
2830 g/cm²
Technical Specs Torque Constant
0.12 N·mA-1
Technical Specs Weight Of Motor
6.7 kg
