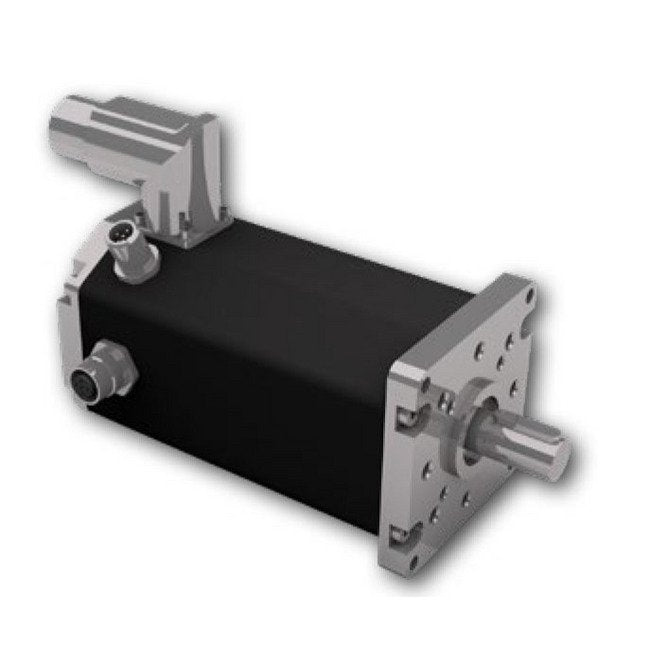

Dunkermotoren BG Series 290W Brushless DC Motor with Integrated Control Electronics
Dunkermotoren BG Series 290W Brushless DC Motor with Integrated Control Electronics
SKU:BGS-9b708b
Experience precision and reliability with Dunkermotoren's BG Series 290W Brushless DC Motor for high-performance control in various applications.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Dunkermotoren BG Series 290W Brushless DC Motor with Integrated Control Electronics
$699.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series 290W Brushless DC Motor with Integrated Control Electronics
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series Brushless DC Motor delivers industry-leading performance with a nominal output power of 290W. Featuring integrated control electronics, this motor ensures high position accuracy and exceptional control characteristics. With a field-oriented control system and a resolution of 4096 cpr, it offers precise control in various operational modes. Designed for reliability and efficiency, this motor is programmable, offers inherent overload protection, and is equipped with high IP protection against water and contamination. Suitable for institutional and government applications requiring advanced motion control solutions.
Product Specifications
Features Features
Speed- positioning- and current control operationCan be combined with high resolution encoders, brakes and gearboxes in the modular systemControl through bus or I/Os or stand-alone operationHigh IP protection against water or contaminationInherent overload protectionProgrammable with Motion CodeMonitoring with Smart DiagnosticsCANopen version availableIO modeSpeed modeCurrent modePositioningDigital inputs configurableAnalog inputsDigital outputsBrake outputProgrammableService interfaceOscilloscope softwareSmart DiagnosticsDigital labelVibration resistanceBallast circuitHigh efficiencySinusoidal vector controlS-RampeInterpolationSSI version availableSafe torque off version availableOperating hours
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
560 W
Technical Specs Direct Current Dc Voltage Range
3 to 58 V
Technical Specs Feedback Integrated
4096 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
501 W
Technical Specs Maximum Torque
2.26 N·m
Technical Specs Nominal Current
14.02 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Nominal Output Power
290 W
Technical Specs Nominal Speed
3850 rpm
Technical Specs Nominal Torque
0.72 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Peak Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
4680 rpm
Technical Specs Peak Current
32.6 A
Technical Specs Peak Power
1700 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
240 g/cm²
Technical Specs Torque Constant
0.067 N·mA-1
Technical Specs Weight Of Motor
1.6 kg
