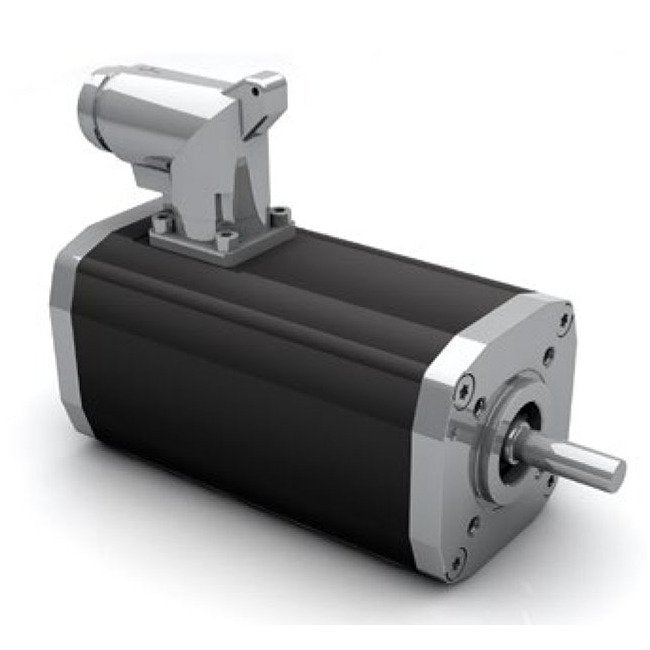

Dunkermotoren BG Series 3.8A Brushless DC Motor with Integrated Control Electronics
Dunkermotoren BG Series 3.8A Brushless DC Motor with Integrated Control Electronics
SKU:BGS-9882df
Powerful Dunkermotoren BG Series Brushless DC Motor with integrated control electronics for precise operations.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Dunkermotoren BG Series 3.8A Brushless DC Motor with Integrated Control Electronics
$249.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series 3.8A Brushless DC Motor with Integrated Control Electronics
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience precision and power with the Dunkermotoren BG Series Brushless DC Motor. This motor features a nominal current of 3.8A and a nominal output power of 73.7W, ensuring reliable performance in various applications. With integrated control electronics, speed, positioning, and current control operations are enhanced. It meets industry standards such as China Quality Certification (CQC), European Conformity (CE), and Underwriters Laboratories (UL), making it ideal for federal, GSA, and DLA procurement needs.
Product Specifications
Features Features
Speed- positioning- and current control operationCan be combined with high resolution encoders, brakes and gearboxes in the modular systemControl through bus or I/Os or stand-alone operationHigh IP protection against water or contaminationInherent overload protectionProgrammable with Motion CodeMonitoring with Smart DiagnosticsIO modeSpeed modeBlock commutationDigital inputsAnalog inputsDigital outputsService interfaceOscilloscope software availablePremium efficiencyOperating hoursVibration resistanceEPLAN Data Portal
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
74 W
Technical Specs Direct Current Dc Voltage Range
10 to 50 V
Technical Specs Feedback Integrated
24 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
102 W
Technical Specs Maximum Torque
0.999 N·m
Technical Specs Nominal Current
3.8 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Nominal Output Power
73.7 W
Technical Specs Nominal Speed
3210 rpm
Technical Specs Nominal Torque
0.219 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Peak Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
3913 rpm
Technical Specs Peak Current
15 A
Technical Specs Peak Power
122 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
44 g/cm²
Technical Specs Torque Constant
0.064 N·mA-1
Technical Specs Weight Of Motor
0.56 kg
