Dunkermotoren BG Series 3.9A Brushless DC Motor
Dunkermotoren BG Series 3.9A Brushless DC Motor
SKU:BGS-67716b
Versatile Dunkermotoren BG Series 3.9A Brushless DC Motor for precise motion control in diverse applications.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Dunkermotoren BG Series 3.9A Brushless DC Motor
$249.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series 3.9A Brushless DC Motor
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

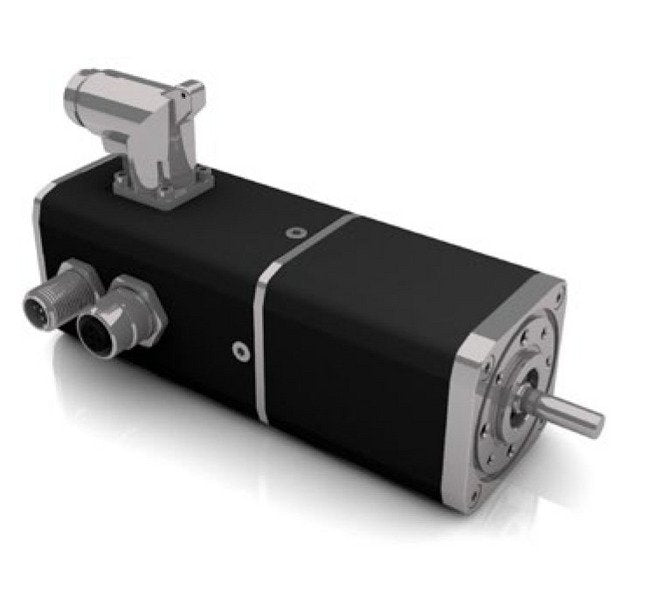

The Dunkermotoren BG Series Brushless DC Motor with Integrated Control Electronics is a versatile solution for precise motion control in various applications. With a nominal current of 3.9A and a nominal output power of 71.9W, this motor offers high positions accuracy and excellent control characteristics. It features field-oriented control, a high-resolution integral magnetic encoder, and can be programmed for customized operations. With advanced features like speed, positioning, and current control, this motor ensures reliable performance and seamless integration with encoders, brakes, and gearboxes.
Product Specifications
Features Features
Speed- positioning- and current control operationCan be combined with high resolution encoders, brakes and gearboxes in the modular systemControl through bus or I/Os or stand-alone operationHigh IP protection against water or contaminationInherent overload protectionProgrammable with Motion CodeMonitoring with Smart DiagnosticsCANopen version availableIO modeSpeed modeCurrent modePositioningDigital inputs configurableAnalog inputsDigital outputsBrake outputProgrammableService interfaceOscilloscope softwareSmart DiagnosticsDigital labelVibration resistanceHigh efficiencySinusoidal vector controlS-RampeInterpolationSSI version availableSafe torque off version availableOperating hours
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
109.5 W
Technical Specs Direct Current Dc Voltage Range
2 to 58 V
Technical Specs Feedback Integrated
4096 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Nominal Current
3.9 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Nominal Output Power
71.9 W
Technical Specs Nominal Speed
4580 rpm
Technical Specs Nominal Torque
0.15 N·m
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs No Load Speed
5230 rpm
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
24 g/cm²
Technical Specs Weight Of Motor
0.63 kg
