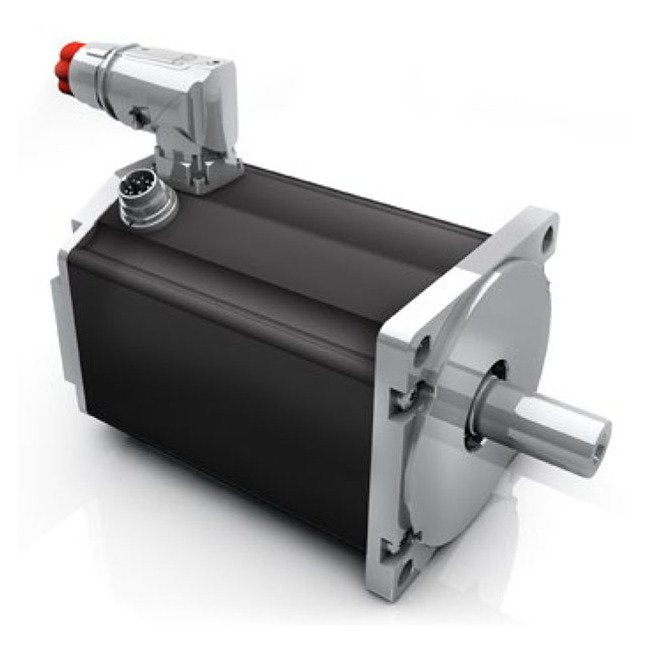

Dunkermotoren BG Series 32.6A Brushless DC Motor
Dunkermotoren BG Series 32.6A Brushless DC Motor
SKU:BGS-1569c3
Discover high-efficiency power with the Dunkermotoren BG Series 32.6A Brushless DC Motor. Peak performance meets reliability in this industry-compliant motor.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Dunkermotoren BG Series 32.6A Brushless DC Motor
$699.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series 32.6A Brushless DC Motor
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unparalleled efficiency and reliability with the Dunkermotoren BG Series 32.6A Brushless DC Motor. This motor boasts a peak power of 4400W, a robust design, and compliance with industry-leading standards like IP65 protection and UL certification. With neodymium magnets, high power density, and maintenance-free operation, this motor ensures optimized control characteristics and a wide speed range for various applications.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsPremium efficiencyVibration resistanceEPLAN Data Portal
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
1100 W
Technical Specs Feedback Integrated
24 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
4400 W
Technical Specs Maximum Torque
14.5 N·m
Technical Specs Nominal Current
32.6 A
Technical Specs Nominal Direct Current Dc Voltage
48 V
Technical Specs Nominal Output Power
1370 W
Technical Specs Nominal Speed
3900 rpm
Technical Specs Nominal Torque
3.5 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Direct Current Dc Voltage
Preliminary data
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
4200 rpm
Technical Specs Optional Feedback Integrated
4096 cycles/rev
Technical Specs Peak Power
4400 W
Technical Specs Product Availability
On Request
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
2830 g/cm²
Technical Specs Stall Torque
48 N·m
Technical Specs Torque Constant
0.12 N·mA-1
Technical Specs Weight Of Motor
6.7 kg
