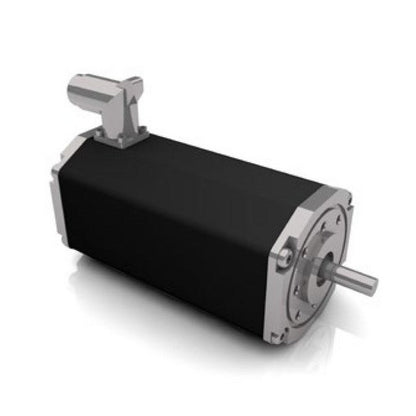

Dunkermotoren BG Series 4A Brushless DC Motor with Hall Sensors
Dunkermotoren BG Series 4A Brushless DC Motor with Hall Sensors
SKU:BGS-1b6821
High-performance Dunkermotoren BG Series 4A Brushless DC Motor with 162W output power, neodymium magnets, and hall sensors for dynamic acceleration and efficiency.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Dunkermotoren BG Series 4A Brushless DC Motor with Hall Sensors
$349.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series 4A Brushless DC Motor with Hall Sensors
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series 4 Ampere Brushless DC Motor with 162 Watt Output Power is a high-performance, maintenance-free motor suitable for a wide range of applications. Featuring neodymium magnets, integrated hall sensors, and high-resolution encoders, this motor delivers exceptional efficiency, dynamic acceleration, and a long operational lifespan. With IP65 protection and certifications such as China Quality Certification (CQC) and Underwriters Laboratories (UL), it meets stringent industry standards for quality and reliability. Combine it with control electronics, gearboxes, brakes, and encoders for a versatile and market-oriented solution.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsVibration resistanceEPLAN Data Portal
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
275 W
Technical Specs Feedback Integrated
30 cycles/rev | 4096 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
326 W
Technical Specs Maximum Torque
1.46 N·m
Technical Specs Nominal Current
4 A
Technical Specs Nominal Direct Current Dc Voltage
48 V
Technical Specs Nominal Output Power
162 W
Technical Specs Nominal Speed
3680 rpm
Technical Specs Nominal Torque
0.42 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
4580 rpm
Technical Specs Peak Power
730 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
70 g/cm²
Technical Specs Torque Constant
0.13 N·mA-1
Technical Specs Weight Of Motor
0.99 kg
