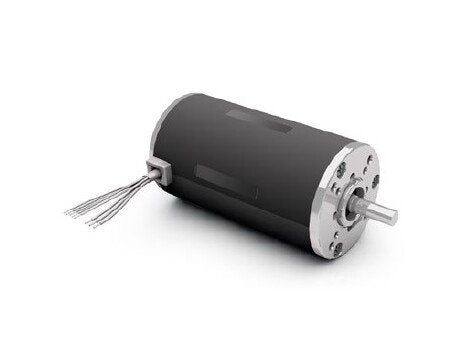

Dunkermotoren BG Series 5.1A Brushless DC Motor with Hall Sensors
Dunkermotoren BG Series 5.1A Brushless DC Motor with Hall Sensors
SKU:BGS-e77b26
Powerful Dunkermotoren BG Series Brushless DC Motor with Hall Sensors, high efficiency, and reliable performance for diverse applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Dunkermotoren BG Series 5.1A Brushless DC Motor with Hall Sensors
$299.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series 5.1A Brushless DC Motor with Hall Sensors
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series 5.1A Brushless DC Motor with integrated Hall Sensors offers exceptional performance and reliability for a wide range of applications. With a nominal output power of 91W and a peak power of 182W, this motor delivers high efficiency and dynamic acceleration. Designed for longevity and efficiency, it features neodymium magnets, premium efficiency, vibration resistance, and a robust construction. Compliant with Ingress Protection (IP40) standards and industry certifications like China Quality Certification (CQC) and Underwriters Laboratories (UL), this motor is a dependable choice for both consumer and institutional buyers.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsPremium efficiencyVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
125 W
Technical Specs Demagnetisation Current
⥠70 A
Technical Specs Feedback Integrated
12 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
182 W
Technical Specs Maximum Torque
2.11 N·m
Technical Specs Nominal Current
5.1 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Nominal Output Power
91 W
Technical Specs Nominal Speed
3210 rpm
Technical Specs Nominal Torque
0.270 N·m
Technical Specs Note For Demagnetisation Current
ÏR = 20ºC
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Current
ÏR = 20ºC
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Starting Current
ÏR = 20ºC
Technical Specs Note For Terminal Inductance
Only for hall version
Technical Specs Note For Terminal Resistance
Only for hall version
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Current
0.7 A
Technical Specs No Load Speed
3855 rpm
Technical Specs Peak Power
274 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP40)
Technical Specs Rotor Inertia
262 g/cm²
Technical Specs Stall Torque
2.11 N·m
Technical Specs Starting Current
38.7 A
Technical Specs Terminal Inductance
0.95 mH
Technical Specs Terminal Resistance
0.52 Ω
Technical Specs Torque Constant
0.067 N·mA-1
Technical Specs Weight Of Motor
1.4 kg
