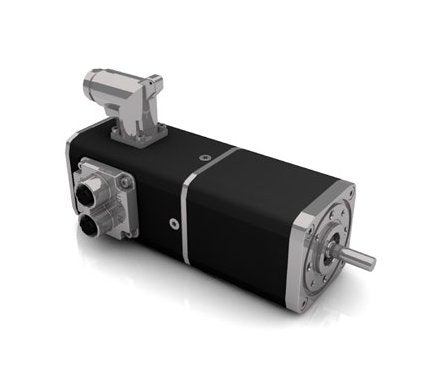

Dunkermotoren BG Series 50A Brushless DC Motor with Integrated Control Electronics
Dunkermotoren BG Series 50A Brushless DC Motor with Integrated Control Electronics
SKU:BGS-771f2f
Highly efficient Dunkermotoren BG Series 50A Brushless DC Motor for precise control in demanding applications.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Dunkermotoren BG Series 50A Brushless DC Motor with Integrated Control Electronics
$599.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series 50A Brushless DC Motor with Integrated Control Electronics
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series 50 Ampere Brushless DC Motor with 700 Watt Nominal Output Power is a versatile solution for applications requiring precise speed, positioning, and current control. This motor, featuring a high-resolution encoder system and Safe Torque Off functionality, offers Profinet, EtherCAT, and EtherNet/IP variants for seamless integration into different control systems. With robust construction and IP65 protection, it ensures reliable performance in various environments. Programmable with Motion Code and equipped with Smart Diagnostics, this motor provides efficient and safe operation. This motor meets industry standards like CE, UL, and CQC, making it a reliable choice for institutional and government buyers.
Product Specifications
Features Features
Speed- positioning- and current control operationCan be combined with high resolution encoders, brakes and gearboxes in the modular systemControl through bus or I/Os or stand-alone operationHigh IP protection against water or contaminationInherent overload protectionProgrammable with Motion CodeMonitoring with Smart DiagnosticsProfinet version availableEtherCAT version availableEtherNet/IP version availableIO modeSpeed modeCurrent modePositioningDigital inputs configurableAnalog inputsDigital outputsBrake outputProgrammableService interfaceOscilloscope softwareSmart DiagnosticsDigital labelOperating hoursHigh efficiencySinusoidal vector controlInterpolationSSI version availableSafe torque off versionS-RampeOperating hours
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
1100 W
Technical Specs Direct Current Dc Voltage Range
5 to 52 V
Technical Specs Feedback Integrated
4096 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
1700 W
Technical Specs Maximum Torque
6.5 N·m
Technical Specs Nominal Current
50 A
Technical Specs Nominal Direct Current Dc Voltage
12 V
Technical Specs Nominal Output Power
700 W
Technical Specs Nominal Speed
3900 rpm
Technical Specs Nominal Torque
1.7 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Direct Current Dc Voltage
Preliminary data
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
4400 rpm
Technical Specs Peak Power
4400 W
Technical Specs Product Availability
On Request
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
950 g/cm²
Technical Specs Torque Constant
0.12 N·mA-1
Technical Specs Weight Of Motor
3.5 kg
