Dunkermotoren BG Series 5A Brushless DC Motor
Dunkermotoren BG Series 5A Brushless DC Motor
SKU:BGS-3e9446
Powerful Dunkermotoren BG Series 5A Brushless DC Motor for precise control in institutional applications.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Dunkermotoren BG Series 5A Brushless DC Motor
$349.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series 5A Brushless DC Motor
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

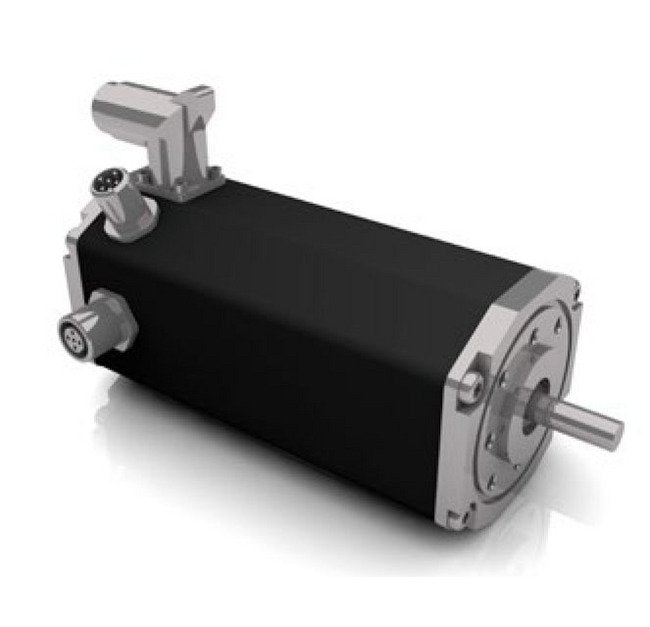

The Dunkermotoren BG Series 5 Ampere Brushless DC Motor with 198 Watt Output Power is a high-performance motor designed for precise speed, positioning, and current control. This motor is equipped with integrated control electronics, allowing for seamless digital and analog input control. With a nominal DC voltage of 48V and adherence to leading industry standards like CQC, CE, and UL, this motor ensures reliable and efficient operation in various applications. Its modular design enables easy integration with encoders, brakes, and gearboxes, while offering IP65 protection and inherent overload protection. Ideal for institutional and government procurement needs.
Product Specifications
Features Features
Speed- positioning- and current control operationCan be combined with high resolution encoders, brakes and gearboxes in the modular systemControl through bus or I/Os or stand-alone operationHigh IP protection against water or contaminationInherent overload protectionProgrammable with Motion CodeMonitoring with Smart DiagnosticsCANopen version availableRS485 version availableIO modeSpeed modeCurrent modePositioningBlock commutationDigital inputs configurableAnalog inputsDigital outputsBrake outputProgrammableService interfaceOscilloscope softwareSmart DiagnosticsDigital labelBallast circuitHigh efficiencyOperating hoursVibration resistanceEPLAN Data Portal
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
278 W
Technical Specs Direct Current Dc Voltage Range
2 to 58 V
Technical Specs Feedback Integrated
30 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
464 W
Technical Specs Maximum Torque
1.94 N·m
Technical Specs Nominal Current
5 A
Technical Specs Nominal Direct Current Dc Voltage
48 V
Technical Specs Nominal Output Power
198 W
Technical Specs Nominal Speed
3440 rpm
Technical Specs Nominal Torque
0.55 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Peak Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
4450 rpm
Technical Specs Peak Current
12.9 A
Technical Specs Peak Power
684 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
129 g/cm²
Technical Specs Torque Constant
0.15 N·mA-1
Technical Specs Weight Of Motor
1.65 kg
