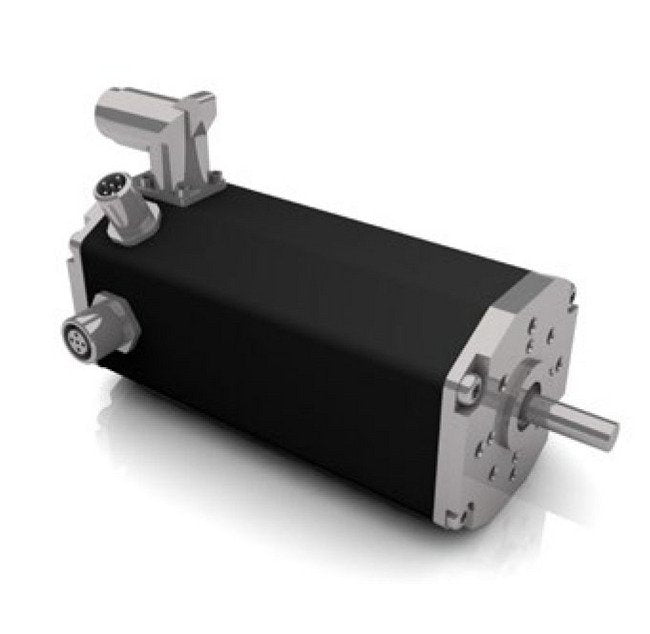

Dunkermotoren BG Series 5A Brushless DC Motor
Dunkermotoren BG Series 5A Brushless DC Motor
SKU:BGS-edd17c
Powerful Dunkermotoren BG Series 5A Brushless DC Motor with integrated controls for precise operations in industrial settings.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Dunkermotoren BG Series 5A Brushless DC Motor
$399.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series 5A Brushless DC Motor
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series 5 Ampere Brushless DC Motor with Integrated Control Electronics is a high-performance motor ensuring precise speed, position, and current control. With advanced features like high IP protection, overload protection, and compatibility with encoders, brakes, and gearboxes, this motor is versatile and reliable for industrial applications. Compliant with China Quality Certification (CQC), CE, and UL standards, this motor guarantees top-notch quality and performance.
Product Specifications
Features Features
Speed- positioning- and current control operationCan be combined with high resolution encoders, brakes and gearboxes in the modular systemControl through bus or I/Os or stand-alone operationHigh IP protection against water or contaminationInherent overload protectionProgrammable with Motion CodeMonitoring with Smart DiagnosticsCANopen version availableRS485 version availableIO modeSpeed modeCurrent modePositioningBlock commutationDigital inputs configurableAnalog inputsDigital outputsBrake outputProgrammableService interfaceOscilloscope softwareSmart DiagnosticsDigital labelBallast circuitHigh efficiencyOperating hoursVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
195 W
Technical Specs Direct Current Dc Voltage Range
2 to 58 V
Technical Specs Feedback Integrated
30 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
391 W
Technical Specs Maximum Torque
1.78 N·m
Technical Specs Nominal Current
5 A
Technical Specs Nominal Direct Current Dc Voltage
48 V
Technical Specs Nominal Output Power
195 W
Technical Specs Nominal Speed
3390 rpm
Technical Specs Nominal Torque
0.55 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Peak Current Consumption
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
5870 rpm
Technical Specs Peak Current Consumption
12.1 A
Technical Specs Peak Power
391 W
Technical Specs Phase Peak Current
21135 mA
Technical Specs Product Availability
Standard Product
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
172 g/cm²
Technical Specs Torque Constant
0.147 N·mA-1
Technical Specs Weight Of Motor
2 kg
