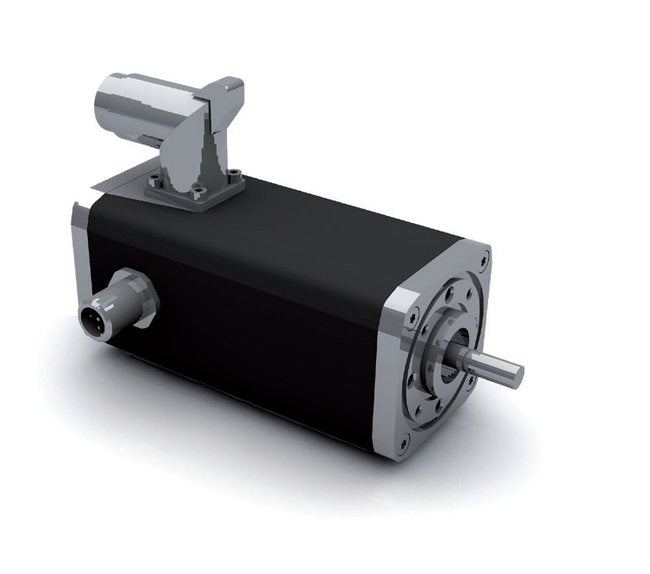

Dunkermotoren BG Series 68.6W Brushless DC Motor
Dunkermotoren BG Series 68.6W Brushless DC Motor
SKU:BGS-950dbf
Experience precision and durability with Dunkermotoren's BG Series Brushless DC Motor. Ideal for speed, positioning, and current control applications.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Dunkermotoren BG Series 68.6W Brushless DC Motor
$249.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series 68.6W Brushless DC Motor
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series Brushless DC Motor with integrated control electronics offers precise speed, positioning, and current control. It features high IP protection, inherent overload protection, and compatibility with various encoders, brakes, and gearboxes. With industry certifications like CQC, CE, and UL, this motor ensures reliable performance and durability in demanding applications. Programmable with Motion Code, Smart Diagnostics, and CANopen compatibility make it versatile and efficient for institutional requirements.
Product Specifications
Features Features
Speed- positioning- and current control operationCan be combined with high resolution encoders, brakes and gearboxes in the modular systemControl through bus or I/Os or stand-alone operationHigh IP protection against water or contaminationInherent overload protectionProgrammable with Motion CodeMonitoring with Smart DiagnosticsCANopen version availableRS485 version availableIO modeSpeed modeCurrent modePositioningBlock commutationDigital inputs configurableAnalog inputsDigital outputsBrake outputProgrammableService interfaceOscilloscope softwareSmart DiagnosticsDigital labelBallast circuitHigh efficiencyOperating hoursVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
109.5 W
Technical Specs Direct Current Dc Voltage Range
2 to 58 V
Technical Specs Feedback Integrated
24 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Nominal Current
7.45 A
Technical Specs Nominal Direct Current Dc Voltage
12 V
Technical Specs Nominal Output Power
68.6 W
Technical Specs Nominal Speed
4430 rpm
Technical Specs Nominal Torque
0.148 N·m
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs No Load Speed
5180 rpm
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
24 g/cm²
Technical Specs Weight Of Motor
0.63 kg
