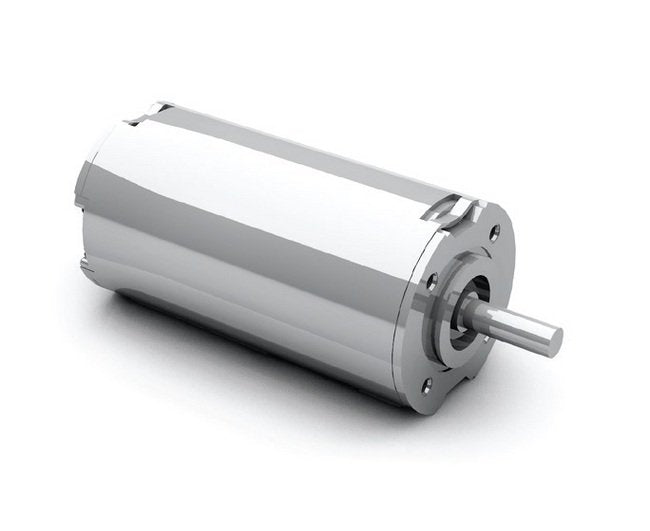

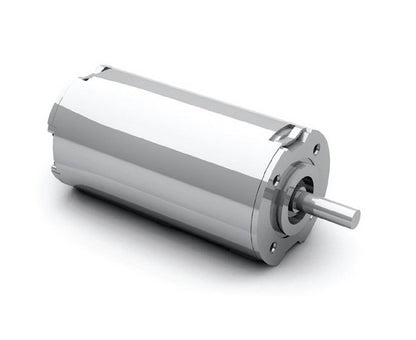

Dunkermotoren BG Series 70W Brushless DC Motor
Dunkermotoren BG Series 70W Brushless DC Motor
SKU:BGS-dcee9c
Highly dynamic BG Series 70W Brushless DC Motor with neodymium magnets and modular compatibility for efficient performance.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Dunkermotoren BG Series 70W Brushless DC Motor
$149.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series 70W Brushless DC Motor
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series 3.6 Ampere Nominal Current and 70 Watt Nominal Output Power Brushless DC Motor with Integrated Commutation is a highly dynamic 3-phase BLDC motor with neodymium magnets. It offers selectable rotational direction, analog speed input, and modular compatibility with gearboxes. Designed with IP construction options, it ensures efficient performance, high power density, and maintenance-free operation. With industry-standard certifications like CE compliance, this motor provides a reliable and adaptable solution for institutional buyers.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.Alternatively, these motors are also available with integrated speed and positioning electronics (see dMove and dPro)Particularly smooth running is the motor BGA 22No cogging torque/ coreless designLow noise levelThis motor is on request available in different voltage versions
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsSpeed set input (6-wire version)Bipolar (3-wire version)Block commutationDigital inputsDigital outputsAnalog inputsPremium efficiencyVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
70 W
Technical Specs Feedback Integrated
24 cycles/rev
Technical Specs Industry Standardscertifications
European Conformity (CE)
Technical Specs Maximum Output Power
143 W
Technical Specs Maximum Torque
0.667 N·m
Technical Specs Nominal Current
3.6 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Nominal Output Power
70 W
Technical Specs Nominal Speed
3600 rpm
Technical Specs Nominal Torque
0.182 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
4200 rpm
Technical Specs Peak Current
9.75 A
Technical Specs Peak Power
214 W
Technical Specs Product Availability
Standard Product
Technical Specs Protection Class
Ingress Protection (IP40)
Technical Specs Rotor Inertia
44 g/cm²
Technical Specs Torque Constant
0.061 N·mA-1
Technical Specs Weight Of Motor
0.47 kg
