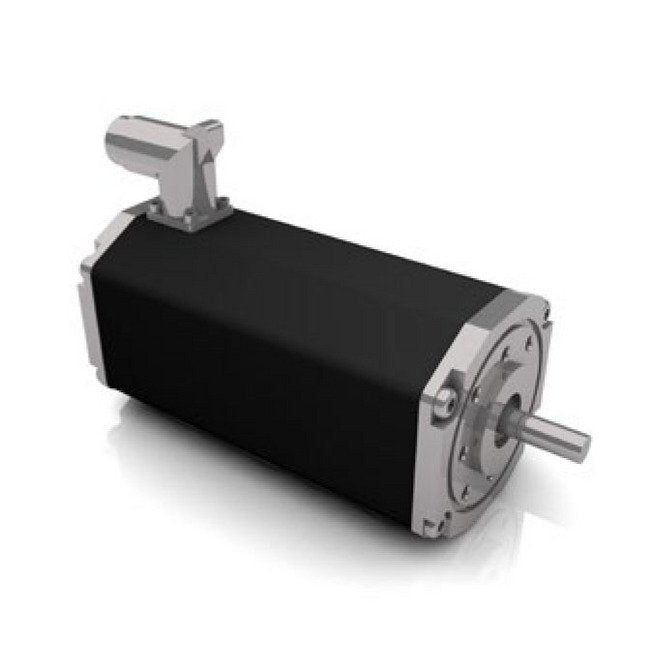

Dunkermotoren BG Series 8.5A 353W Brushless DC Motor
Dunkermotoren BG Series 8.5A 353W Brushless DC Motor
SKU:BGS-897303
Highly efficient Dunkermotoren BG Series 8.5A 353W Brushless DC Motor for dynamic performance and enhanced safety.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Dunkermotoren BG Series 8.5A 353W Brushless DC Motor
$289.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series 8.5A 353W Brushless DC Motor
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series Brushless DC Motor is designed for superior performance, featuring high efficiency, dynamic acceleration, and a wide speed range. With integrated hall sensors, this motor provides precise rotor position detection and optional redundant encoders for enhanced safety. Compliant with Ingress Protection (IP65) and industry certifications like China Quality Certification (CQC) and Underwriters Laboratories (UL), it ensures quality and reliability. Partnered with control electronics, gearboxes, and encoders, this motor offers a flexible, market-oriented solution.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsVibration resistanceEPLAN Data Portal
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
275 W
Technical Specs Feedback Integrated
30 cycles/rev | 4096 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
811 W
Technical Specs Maximum Torque
4.38 N·m
Technical Specs Nominal Current
8.5 A
Technical Specs Nominal Direct Current Dc Voltage
48 V
Technical Specs Nominal Output Power
353 W
Technical Specs Nominal Speed
3540 rpm
Technical Specs Nominal Torque
0.954 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
3870 rpm
Technical Specs Peak Power
730 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
188 g/cm²
Technical Specs Torque Constant
0.13 N·mA-1
Technical Specs Weight Of Motor
1.93 kg
