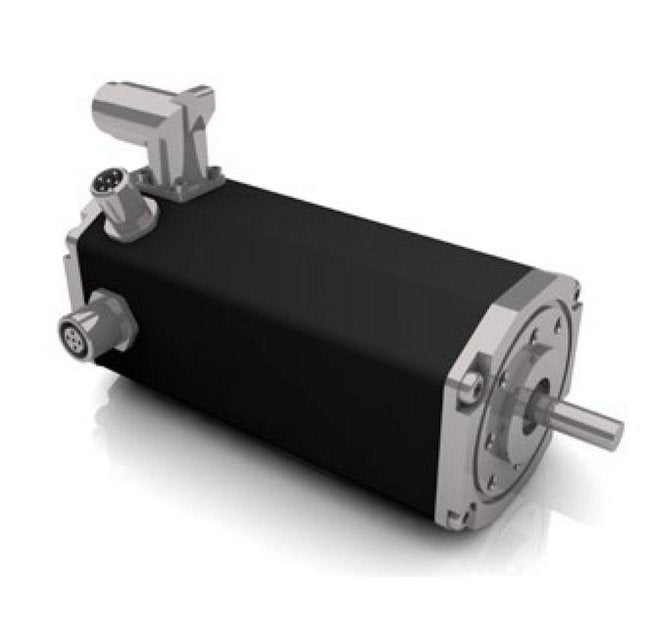

Dunkermotoren BG Series Brushless DC Motor
Dunkermotoren BG Series Brushless DC Motor
SKU:BGS-a6e879
High-performing Dunkermotoren BG Series Brushless DC Motor with Integrated Control Electronics, ideal for precision control applications. Meets CQC, CE, and UL standards.
Regular price
$389.99
Regular price
Sale price
$389.99
Unit price
per
Initiate Order
Dunkermotoren BG Series Brushless DC Motor
$389.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series Brushless DC Motor
$389.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series Brushless DC Motor with Integrated Control Electronics is a high-performance motor designed for precision speed, positioning, and current control. With a nominal current of 6.9 A and nominal output power of 278 W, this motor offers exceptional torque and speed capabilities. It features a durable design with industry-leading protection against water and contamination, making it suitable for a wide range of applications. Compliant with China Quality Certification (CQC), European Conformity (CE), and Underwriters Laboratories (UL) standards, this motor ensures reliability and performance.
Product Specifications
Features Features
Speed- positioning- and current control operationCan be combined with high resolution encoders, brakes and gearboxes in the modular systemControl through bus or I/Os or stand-alone operationHigh IP protection against water or contaminationInherent overload protectionProgrammable with Motion CodeMonitoring with Smart DiagnosticsCANopen version availableRS485 version availableIO modeSpeed modeCurrent modePositioningBlock commutationDigital inputs configurableAnalog inputsDigital outputsBrake outputProgrammableService interfaceOscilloscope softwareSmart DiagnosticsDigital labelBallast circuitHigh efficiencyOperating hoursVibration resistanceEPLAN Data Portal
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
278 W
Technical Specs Direct Current Dc Voltage Range
2 to 58 V
Technical Specs Feedback Integrated
30 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
684 W
Technical Specs Maximum Torque
2.88 N·m
Technical Specs Nominal Current
6.9 A
Technical Specs Nominal Direct Current Dc Voltage
48 V
Technical Specs Nominal Output Power
278 W
Technical Specs Nominal Speed
3540 rpm
Technical Specs Nominal Torque
0.75 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Peak Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
4470 rpm
Technical Specs Peak Current
18.7 A
Technical Specs Peak Power
684 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
187 g/cm²
Technical Specs Torque Constant
0.15 N·mA-1
Technical Specs Weight Of Motor
2.1 kg
