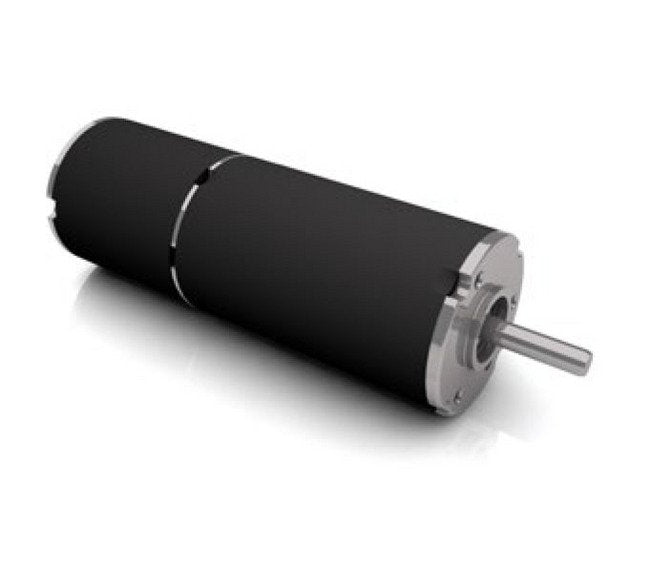

Dunkermotoren BG Series Brushless DC Motor - 1.27A, 23.8W
Dunkermotoren BG Series Brushless DC Motor - 1.27A, 23.8W
SKU:BGS-5965ed
High-efficiency Dunkermotoren motor with integrated commutation for reliable performance in institutional applications.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Dunkermotoren BG Series Brushless DC Motor - 1.27A, 23.8W
$189.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series Brushless DC Motor - 1.27A, 23.8W
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series Brushless DC Motor offers exceptional performance with integrated commutation electronics. With high efficiency, dynamic acceleration, wide speed range, and maintenance-free operation, this motor is ideal for institutional applications. Compliant with UL standards and featuring neodymium magnets, this motor ensures reliability and longevity in government and institutional settings.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.Alternatively, these motors are also available with integrated speed and positioning electronics (see dMove and dPro)Particularly smooth running is the motor BGA 22No cogging torque/ coreless designLow noise levelThis motor is on request available in different voltage versions
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsSpeed set input (6-wire version)Bipolar (3-wire version)Block commutationDigital inputsDigital outputsAnalog inputsPremium efficiencyVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
24 W
Technical Specs Feedback Integrated
18 cycles/rev
Technical Specs Industry Standardscertifications
Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
236 W
Technical Specs Nominal Current
1.27 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Nominal Output Power
23.80 W
Technical Specs Nominal Speed
13160 rpm
Technical Specs Nominal Torque
0.0173 N·m
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Torque Constant
Only for hall version
Technical Specs No Load Speed
14490 rpm
Technical Specs Peak Current
8 A
Technical Specs Peak Power
236 W
Technical Specs Product Availability
Standard Product
Technical Specs Protection Class
Ingress Protection (IP40)
Technical Specs Rotor Inertia
15 g/cm²
Technical Specs Stall Torque
0.109 N·m
Technical Specs Torque Constant
0.0162 N·mA-1
Technical Specs Weight Of Motor
0.065 kg
