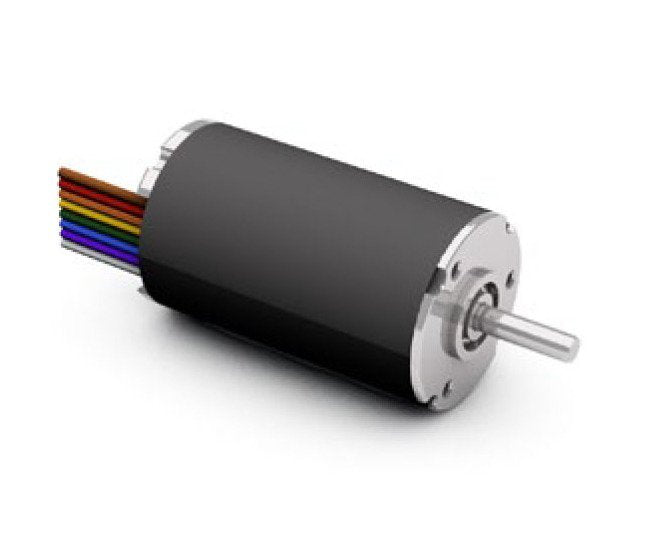

Dunkermotoren BG Series Brushless DC Motor
Dunkermotoren BG Series Brushless DC Motor
SKU:BGS-d06522
High-performance Dunkermotoren BG Series Brushless DC Motor with Hall Sensors for precision and reliability.
Regular price
$179.99
Regular price
Sale price
$179.99
Unit price
per
Initiate Order
Dunkermotoren BG Series Brushless DC Motor
$179.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series Brushless DC Motor
$179.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series Brushless Direct Current (DC) Motor with Integrated Hall Sensors offers exceptional performance and reliability. With a nominal current of 5.40A and a nominal output power of 25.80W, this motor is ideal for applications requiring high power density, low noise operation, and precise rotor position detection. Featuring a weight-optimized design, neodymium magnets, and a wide speed range, this motor ensures optimized control characteristics, efficiency, and overload capability. Suitable for sensorless control and with premium efficiency, the BG Series is maintenance-free, robust, and compliant with industry standards such as UL, making it a top choice for institutional and government buyers.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.Connection via ribbon cable - Optionally, the motors are also available with flying plugs
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsPremium efficiencyVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
25 W
Technical Specs Feedback Integrated
18 cycles/rev
Technical Specs Industry Standardscertifications
Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
59 W
Technical Specs Nominal Current
5.40 A
Technical Specs Nominal Direct Current Dc Voltage
6 V
Technical Specs Nominal Output Power
25.80 W
Technical Specs Nominal Speed
12.100 rpm
Technical Specs Nominal Torque
0.020 N·m
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Terminal Inductance
Only for hall version
Technical Specs Note For Terminal Resistance
Only for hall version
Technical Specs Note For Torque Constant
Only for hall version
Technical Specs No Load Speed
14000 rpm
Technical Specs Peak Power
236 W
Technical Specs Product Availability
Standard Product
Technical Specs Protection Class
Ingress Protection (IP40)
Technical Specs Rotor Inertia
15 g/cm²
Technical Specs Stall Torque
0.16 N·m
Technical Specs Terminal Inductance
7.0 µH
Technical Specs Terminal Resistance
0.15 Ω
Technical Specs Torque Constant
0.004 N·mA-1
Technical Specs Weight Of Motor
0.065 kg
