Dunkermotoren BG Series Brushless DC Motor
Dunkermotoren BG Series Brushless DC Motor
SKU:BGS-ec9f93
Highly dynamic Dunkermotoren BG Series Brushless DC Motor with superior efficiency & reliability.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Dunkermotoren BG Series Brushless DC Motor
$299.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series Brushless DC Motor
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

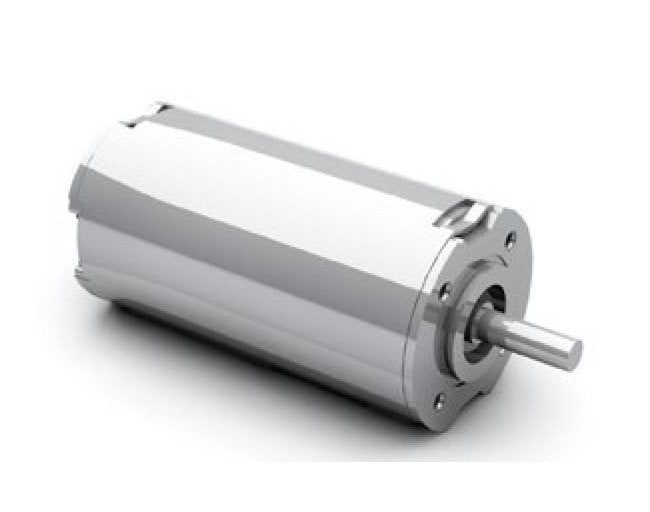

The Dunkermotoren BG Series Brushless DC Motor is a highly dynamic 3-phase EC motor featuring 8-pole neodymium magnets and integrated Hall sensors for rotor position detection. With a nominal current of 4.4A and nominal output power of 38W, this motor offers exceptional efficiency, dynamic acceleration, and a wide speed range. It is designed for longevity, high power density, and maintenance-free operation, making it a reliable choice for various applications. Compliant with UL standards, this motor ensures premium efficiency, overload capability, and vibration resistance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsPremium efficiencyVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
20 W
Technical Specs Demagnetisation Current
⥠30 A
Technical Specs Feedback Integrated
24 cycles/rev
Technical Specs Industry Standardscertifications
Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
67.3 W
Technical Specs Maximum Torque
0.602 N·m
Technical Specs Nominal Current
4.4 A
Technical Specs Nominal Direct Current Dc Voltage
12 V
Technical Specs Nominal Output Power
38 W
Technical Specs Nominal Speed
3410 rpm
Technical Specs Nominal Torque
0.106 N·m
Technical Specs Note For Demagnetisation Current
ÏR = 20ºC
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Current
ÏR = 20ºC
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Starting Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
Only for hall version
Technical Specs No Load Current
0.34 A
Technical Specs No Load Speed
4670 rpm
Technical Specs Peak Power
27 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP40)
Technical Specs Rotor Inertia
24 g/cm²
Technical Specs Stall Torque
0.602 N·m
Technical Specs Starting Current
19.4 A
Technical Specs Terminal Inductance
0.19 mH
Technical Specs Terminal Resistance
0.28 Ω
Technical Specs Torque Constant
0.028 N·mA-1
Technical Specs Weight Of Motor
0.36 kg
