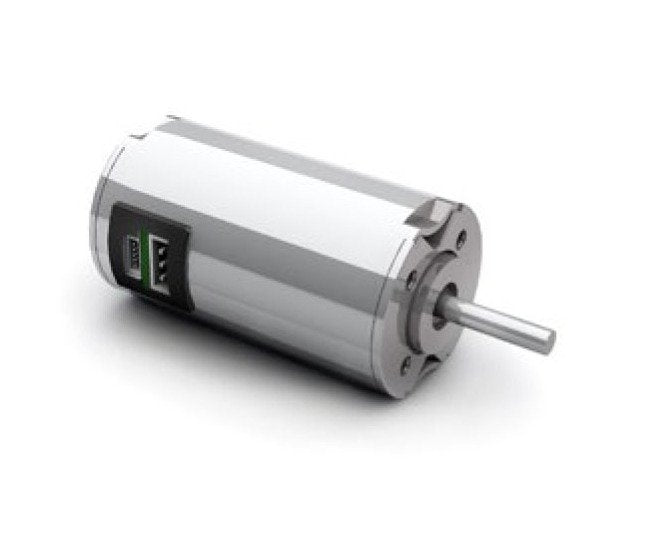

The Dunkermotoren BG Series 1.13A Brushless DC Motor with 17.2W Nominal Power is a high-efficiency, maintenance-free motor optimized for institutional and commercial applications. This motor features integrated Hall sensors for precise rotor position detection, wide speed range, and robust design. With compliance to Ingress Protection (IP40) standards and UL certifications, it ensures reliability and longevity in various industrial settings.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsPremium efficiencyVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
25 W
Technical Specs Demagnetisation Current
⥠7.5 A
Technical Specs Feedback Integrated
24 cycles/rev
Technical Specs Industry Standardscertifications
Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
26.7 W
Technical Specs Maximum Torque
0.162 N·m
Technical Specs Nominal Current
1.13 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Nominal Output Power
17.2 W
Technical Specs Nominal Speed
3600 rpm
Technical Specs Nominal Torque
0.044 N·m
Technical Specs Note For Demagnetisation Current
ÏR = 20ºC
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Current
ÏR = 20ºC
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Starting Current
ÏR = 20ºC
Technical Specs Note For Terminal Inductance
Only for hall version
Technical Specs Note For Terminal Resistance
Only for hall version
Technical Specs Note For Torque Constant
Only for hall version
Technical Specs No Load Current
0.07 A
Technical Specs No Load Speed
4960 rpm
Technical Specs Peak Power
236 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP40)
Technical Specs Rotor Inertia
10.2 g/cm²
Technical Specs Stall Torque
0.162 N·m
Technical Specs Starting Current
4.1 A
Technical Specs Terminal Inductance
1.8 mH
Technical Specs Terminal Resistance
3.82 Ω
Technical Specs Torque Constant
0.05 N·mA-1
Technical Specs Weight Of Motor
0.20 kg
