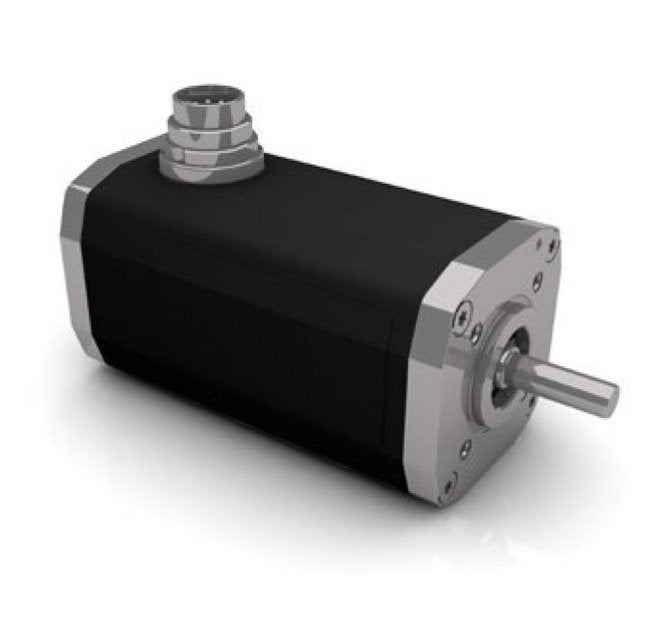

• Dunkermotoren BG Series Brushless DC Motor - Image 1

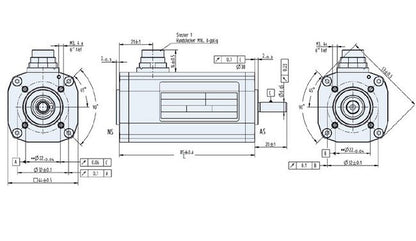

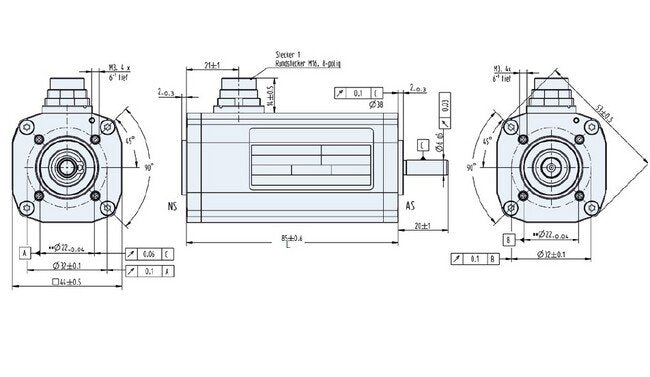

  • Dunkermotoren BG Series Brushless DC Motor - Image 2
1 2
Dunkermotoren →

Dunkermotoren BG Series Brushless DC Motor

Dunkermotoren BG Series Brushless DC Motor

BGS-20b932

Highly efficient and dynamic Dunkermotoren BG Series Brushless DC Motor with Hall sensors for precise control.

$299.99
$299.99
Sale

Initiate Order

Dunkermotoren BG Series Brushless DC Motor

Dunkermotoren BG Series Brushless DC Motor

$299.99

Quantity: 1

Claim Your Seller Account

Dunkermotoren BG Series Brushless DC Motor

Dunkermotoren BG Series Brushless DC Motor

$299.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Dunkermotoren BG Series Brushless DC Motor offers high efficiency and dynamic acceleration for a wide speed range. With integrated Hall sensors for precise rotor position detection, this motor provides maintenance-free operation and robust design. Meeting industry standards like UL certifications, the BG Series ensures reliability and longevity in various applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsPremium efficiencyVibration resistanceEPLAN Data Portal
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
80 W
Technical Specs Demagnetisation Current
≥ 53 A
Technical Specs Feedback Integrated
24 cycles/rev
Technical Specs Industry Standardscertifications
Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
168 W
Technical Specs Maximum Torque
1.53 N·m
Technical Specs Nominal Current
8.5 A
Technical Specs Nominal Direct Current Dc Voltage
12 V
Technical Specs Nominal Output Power
80 W
Technical Specs Nominal Speed
3530 rpm
Technical Specs Nominal Torque
0.217 N·m
Technical Specs Note For Demagnetisation Current
ϑR = 20ºC
Technical Specs Note For Maximum Torque
ϑR = 20ºC
Technical Specs Note For Nominal Current
Δϑw = 100 K
Technical Specs Note For Nominal Output Power
ϑR = 20ºC
Technical Specs Note For Nominal Torque
Δϑw = 100 K
Technical Specs Note For No Load Current
ϑR = 20ºC
Technical Specs Note For No Load Speed
Δϑw = 100 K
Technical Specs Note For Stall Torque
ϑR = 20ºC
Technical Specs Note For Starting Current
ϑR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Current
0.82 A
Technical Specs No Load Speed
4195 rpm
Technical Specs Peak Power
156 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
44 g/cm²
Technical Specs Stall Torque
1.53 N·m
Technical Specs Starting Current
64.6 A
Technical Specs Terminal Inductance
0.10 mH
Technical Specs Terminal Resistance
0.14 Ω
Technical Specs Torque Constant
0.0239 N·mA-1
Technical Specs Weight Of Motor
0.56 kg
