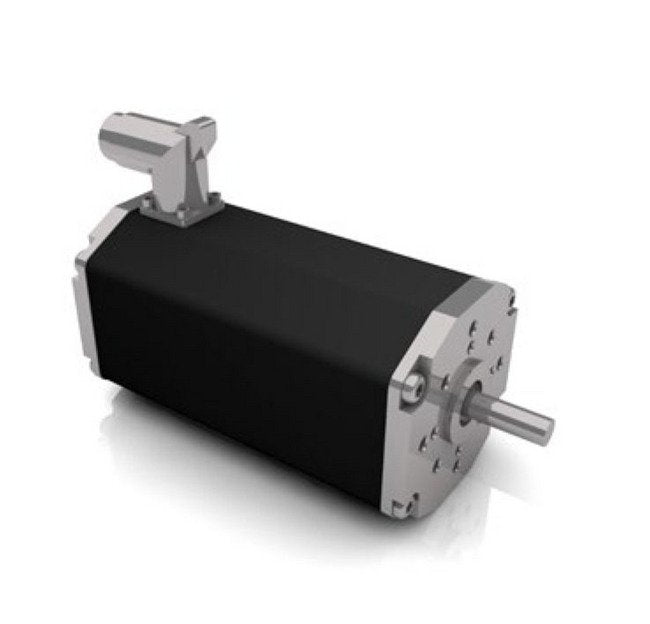

Dunkermotoren BG Series Brushless DC Motor
Dunkermotoren BG Series Brushless DC Motor
SKU:BGS-380f01
Powerful BG Series Brushless DC Motor with Hall Sensors for dynamic performance and reliability.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Dunkermotoren BG Series Brushless DC Motor
$349.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series Brushless DC Motor
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors is a highly dynamic 3-phase EC motor designed for exceptional efficiency and durability. With a nominal output power of 172W and a peak power of 355W, this motor offers robust performance for a wide range of applications. Featuring hall sensors for rotor position detection, this motor ensures precise control and optimized characteristics. Compliant with industry standards including CQC and UL certifications, this motor also meets high overload capability and IP65 protection class requirements, making it a reliable choice for institutional buyers seeking quality and performance.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsHigh efficiencyVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
181 W
Technical Specs Feedback Integrated
30 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
302 W
Technical Specs Maximum Torque
1.70 N·m
Technical Specs Nominal Current
0.73 A
Technical Specs Nominal Direct Current Dc Voltage
325 V
Technical Specs Nominal Output Power
172 W
Technical Specs Nominal Speed
3240 rpm
Technical Specs Nominal Torque
0.506 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
5590 rpm
Technical Specs Peak Power
355 W
Technical Specs Product Availability
Standard Product
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
172 g/cm²
Technical Specs Torque Constant
0.946 N·mA-1
Technical Specs Weight Of Motor
1.80 kg
