Dunkermotoren BG Series Brushless DC Motor
Dunkermotoren BG Series Brushless DC Motor
SKU:BGS-dcf2f6
Highly dynamic EC motor with integrated Hall sensors, offering efficiency and precision for industrial applications.
Regular price
$239.99
Regular price
Sale price
$239.99
Unit price
per
Initiate Order
Dunkermotoren BG Series Brushless DC Motor
$239.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series Brushless DC Motor
$239.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

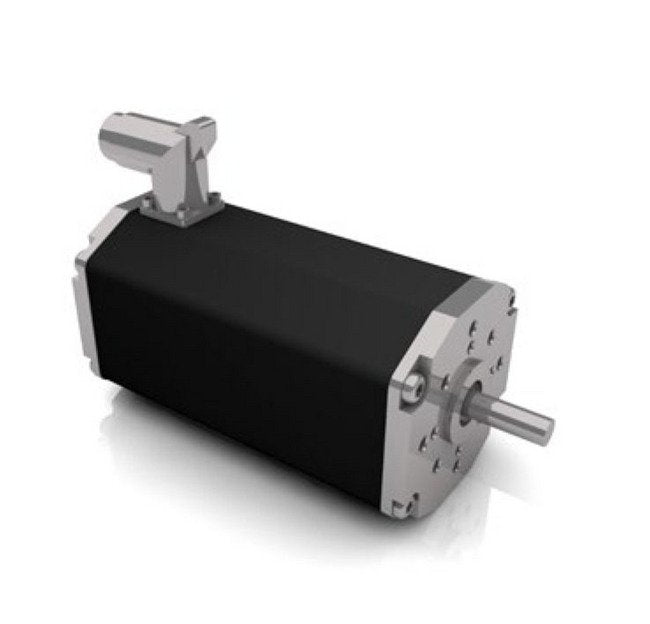

The Dunkermotoren BG Series Brushless DC Motor is a highly dynamic 3-phase EC motor featuring integrated Hall sensors for precise rotor position detection. With a nominal current of 3.68 A and a nominal output power of 177 W, this motor offers exceptional efficiency, dynamic acceleration, and wide speed range. Designed for longevity and high performance, it boasts a maintenance-free, robust construction with neodymium magnets and Class E motor insulation. Compliant with IP65 protection standards, this motor ensures reliability in various industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsHigh efficiencyVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
181 W
Technical Specs Feedback Integrated
30 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
355 W
Technical Specs Maximum Torque
1.70 N·m
Technical Specs Nominal Current
3.68 A
Technical Specs Nominal Direct Current Dc Voltage
60 V
Technical Specs Nominal Output Power
177 W
Technical Specs Nominal Speed
3940 rpm
Technical Specs Nominal Torque
0.429 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
6020 rpm
Technical Specs Peak Power
355 W
Technical Specs Product Availability
Standard Product
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
172 g/cm²
Technical Specs Torque Constant
0.157 N·mA-1
Technical Specs Weight Of Motor
1.80 kg
