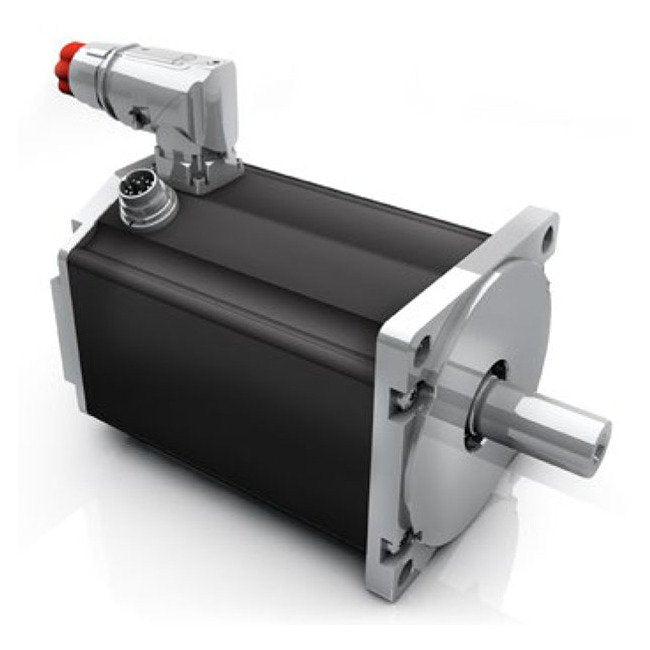

Dunkermotoren BG Series Brushless DC Motor
Dunkermotoren BG Series Brushless DC Motor
SKU:BGS-c74cae
Experience precision and efficiency with Dunkermotoren BG Series Brushless DC Motor. Ideal for a variety of applications, this motor ensures reliable performance with integrated Hall sensors.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Dunkermotoren BG Series Brushless DC Motor
$799.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series Brushless DC Motor
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series Brushless DC Motor offers exceptional performance with a nominal current of 33.3A and 701W nominal output power. With integrated Hall sensors for rotor position detection, this motor ensures precise operation. It boasts high efficiency, robust design, and maintenance-free operation, making it ideal for a wide range of applications. Designed to meet industry standards for reliability and durability, the BG Series motor is a market-oriented solution for institutions and government buyers.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsPremium efficiencyVibration resistanceEPLAN Data Portal
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
1100 W
Technical Specs Demagnetisation Current
⥠40 A
Technical Specs Feedback Integrated
24 cycles/rev
Technical Specs Industry Standardscertifications
Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
1819 W
Technical Specs Maximum Torque
6.45 N·m
Technical Specs Nominal Current
33.3 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Nominal Output Power
701 W
Technical Specs Nominal Speed
3940 rpm
Technical Specs Nominal Torque
1.7 N·m
Technical Specs Note For Demagnetisation Current
ÏR = 20ºC
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Current
ÏR = 20ºC
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Starting Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Current
2.8 A
Technical Specs No Load Speed
4400 rpm
Technical Specs Optional Feedback Integrated
4096 cycles/rev
Technical Specs Peak Power
4400 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
950 g/cm²
Technical Specs Stall Torque
16.3 N·m
Technical Specs Starting Current
1043 A
Technical Specs Terminal Inductance
0.067 mH
Technical Specs Terminal Resistance
0.023 Ω
Technical Specs Torque Constant
0.057 N·mA-1
Technical Specs Weight Of Motor
3.5 kg
