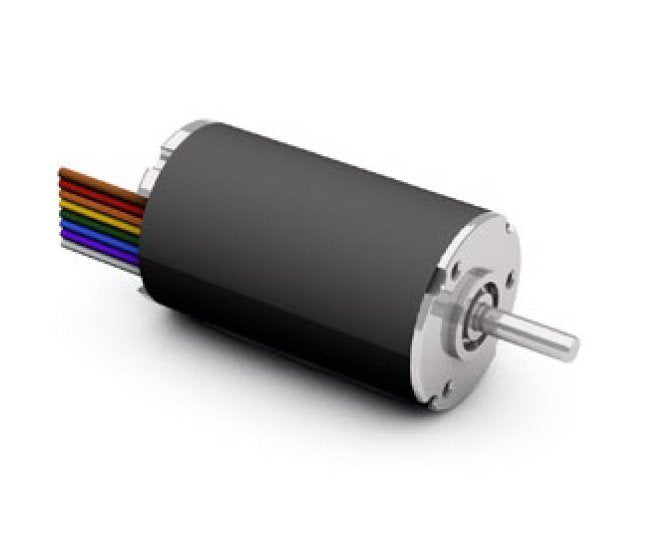

Dunkermotoren BG Series Brushless DC Motor 2.12A 18W
Dunkermotoren BG Series Brushless DC Motor 2.12A 18W
SKU:BGS-5ad83f
High-quality Dunkermotoren BG Series Brushless DC Motor with Hall Sensors for precise, maintenance-free operation.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Dunkermotoren BG Series Brushless DC Motor 2.12A 18W
$149.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series Brushless DC Motor 2.12A 18W
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors is a high-quality 3-phase BLDC motor featuring rare earth-magnets and a weight-optimized design. With hall sensors for rotor position detection, this motor ensures precise control and is suitable for sensorless applications. It offers high power density, low noise levels, and overload capability, making it ideal for demanding institutional and government procurement needs. Compliant with industry standards like Underwriters Laboratories (UL), this motor guarantees long-term reliability, efficiency, and maintenance-free operation.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.Connection via ribbon cable - Optionally, the motors are also available with flying plugs
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsPremium efficiencyVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
25 W
Technical Specs Demagnetisation Current
⥠14 A
Technical Specs Feedback Integrated
18 cycles/rev
Technical Specs Industry Standardscertifications
Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
132 W
Technical Specs Maximum Torque
0.144 N·m
Technical Specs Nominal Current
2.12 A
Technical Specs Nominal Direct Current Dc Voltage
12 V
Technical Specs Nominal Output Power
18.00 W
Technical Specs Nominal Speed
8.940 rpm
Technical Specs Nominal Torque
0.0193 N·m
Technical Specs Note For Demagnetisation Current
ÏR = 20ºC
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Current
ÏR = 20ºC
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Starting Current
ÏR = 20ºC
Technical Specs Note For Terminal Inductance
Only for hall version
Technical Specs Note For Terminal Resistance
Only for hall version
Technical Specs Note For Torque Constant
Only for hall version
Technical Specs No Load Current
0.3 A
Technical Specs No Load Speed
11030 rpm
Technical Specs Peak Power
236 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP40)
Technical Specs Rotor Inertia
15 g/cm²
Technical Specs Stall Torque
0.115 N·m
Technical Specs Starting Current
12.20 A
Technical Specs Terminal Inductance
45 µH
Technical Specs Terminal Resistance
1.0 Ω
Technical Specs Torque Constant
0.0106 N·mA-1
Technical Specs Weight Of Motor
0.065 kg
