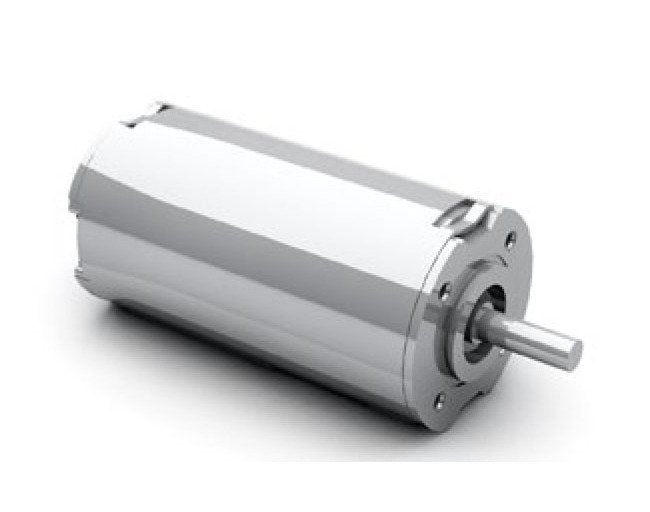

Dunkermotoren BG Series Brushless DC Motor
Dunkermotoren BG Series Brushless DC Motor
SKU:BGS-5bcbdc
High-performance Dunkermotoren BG Series Brushless DC Motor with 4.4A current and 87W power. Reliable, efficient, and compliant with industry standards.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Dunkermotoren BG Series Brushless DC Motor
$299.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series Brushless DC Motor
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series Brushless DC Motor is a high-performance 3-phase EC motor with integrated Hall sensors, offering a nominal current of 4.4 A and a maximum output power of 87 W. Designed for versatility, efficiency, and longevity, this motor excels in dynamic acceleration, control precision, and overload capability. Compliant with industry standards and featuring neodymium magnets, this motor ensures reliability and adaptability for a wide range of applications.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsPremium efficiencyVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
20 W
Technical Specs Demagnetisation Current
⥠37 A
Technical Specs Feedback Integrated
24 cycles/rev
Technical Specs Industry Standardscertifications
Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
226 W
Technical Specs Maximum Torque
2.25 N·m
Technical Specs Nominal Current
4.4 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Nominal Output Power
87 W
Technical Specs Nominal Speed
3600 rpm
Technical Specs Nominal Torque
0.245 N·m
Technical Specs Note For Demagnetisation Current
ÏR = 20ºC
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Direct Current Dc Voltage
Preliminary data
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Current
ÏR = 20ºC
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Starting Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
Only for hall version
Technical Specs No Load Current
0.28 A
Technical Specs No Load Speed
4500 rpm
Technical Specs Peak Power
27 W
Technical Specs Product Availability
On Request
Technical Specs Protection Class
Ingress Protection (IP40)
Technical Specs Rotor Inertia
64 g/cm²
Technical Specs Stall Torque
2.25 N·m
Technical Specs Starting Current
34 A
Technical Specs Terminal Inductance
0.25 mH
Technical Specs Terminal Resistance
0.3 Ω
Technical Specs Torque Constant
0.055 N·mA-1
Technical Specs Weight Of Motor
0.58 kg
