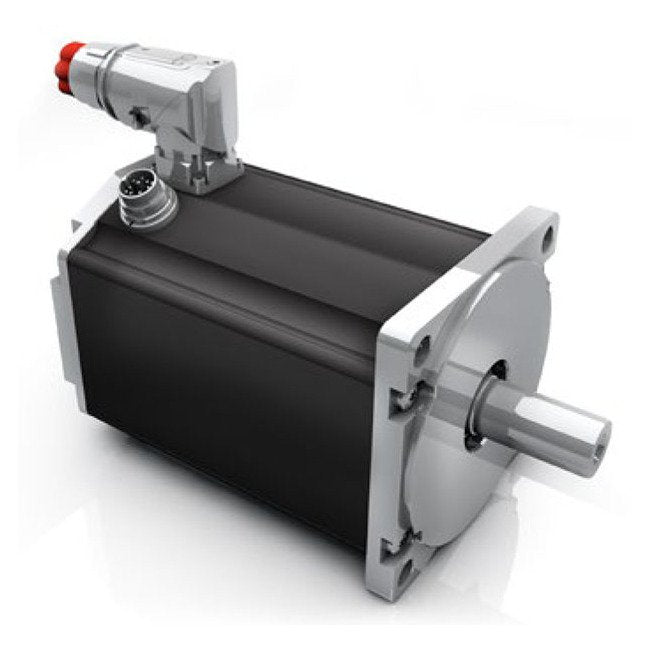

Dunkermotoren BG Series Brushless DC Motor
Dunkermotoren BG Series Brushless DC Motor
SKU:BGS-599328
Highly efficient Dunkermotoren BG Series Brushless DC Motor delivers precision performance and durability. Compliance: IP65, CQC, UL.
Regular price
$749.99
Regular price
Sale price
$749.99
Unit price
per
Initiate Order
Dunkermotoren BG Series Brushless DC Motor
$749.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series Brushless DC Motor
$749.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series 3.8 Ampere Nominal Current and 1106 Watt Nominal Output Power Brushless DC Motor with Integrated Hall Sensors is engineered for precision and reliability. With a peak power of 4400W and premium efficiency, this motor offers high overload capability, low moment of inertia, and industry-leading torque stability. Designed with neodymium magnets, it ensures a wide speed range, maintenance-free operation, and robust performance. Compliant with Ingress Protection (IP65) and industry certifications including CQC and UL, this motor exceeds the requirements of federal procurement standards and industry-specific certifications for a dependable solution.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsPremium efficiencyVibration resistanceEPLAN Data Portal
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
1100 W
Technical Specs Demagnetisation Current
⥠14 A
Technical Specs Feedback Integrated
24 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
3640 W
Technical Specs Maximum Torque
10.5 N·m
Technical Specs Nominal Current
3.8 A
Technical Specs Nominal Direct Current Dc Voltage
325 V
Technical Specs Nominal Output Power
1106 W
Technical Specs Nominal Speed
3855 rpm
Technical Specs Nominal Torque
2.74 N·m
Technical Specs Note For Demagnetisation Current
ÏR = 20ºC
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Direct Current Dc Voltage
Preliminary data
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Current
ÏR = 20ºC
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Starting Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Current
0.330 A
Technical Specs No Load Speed
4070 rpm
Technical Specs Optional Feedback Integrated
4096 cycles/rev
Technical Specs Peak Power
4400 W
Technical Specs Product Availability
Standard Product
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
1890 g/cm²
Technical Specs Stall Torque
53.6 N·m
Technical Specs Starting Current
173 A
Technical Specs Terminal Inductance
7.2 mH
Technical Specs Terminal Resistance
1.83 Ω
Technical Specs Torque Constant
0.828 N·mA-1
Technical Specs Weight Of Motor
5.1 kg
