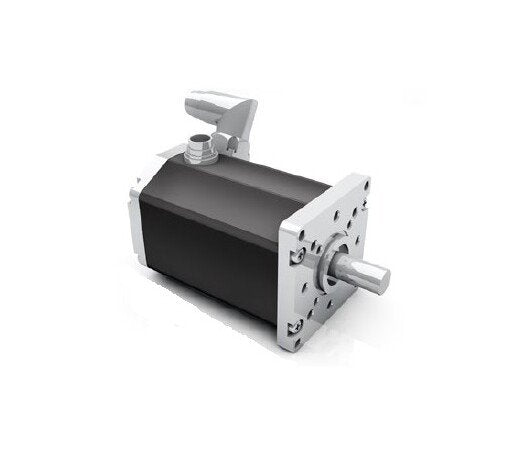

Dunkermotoren BG Series Brushless DC Motor
Dunkermotoren BG Series Brushless DC Motor
SKU:BGS-17f81d
High-performance Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors for efficient and reliable operation.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Dunkermotoren BG Series Brushless DC Motor
$499.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series Brushless DC Motor
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors offers exceptional performance and reliability for a wide range of applications. With a nominal current of 7.4A and nominal output power of 240W, this motor delivers high efficiency, dynamic acceleration, and a wide speed range. Built to last, it features neodymium magnets, premium efficiency, robust design, and maintenance-free operation. Compliant with industry standards such as China Quality Certification (CQC) and Underwriters Laboratories (UL), this motor ensures quality and reliability in demanding environments.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsPremium efficiencyVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
550 W
Technical Specs Demagnetisation Current
⥠38 A
Technical Specs Feedback Integrated
24 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
420 W
Technical Specs Maximum Torque
2.5 N·m
Technical Specs Nominal Current
7.4 A
Technical Specs Nominal Direct Current Dc Voltage
40 V
Technical Specs Nominal Output Power
240 W
Technical Specs Nominal Speed
3650 rpm
Technical Specs Nominal Torque
0.64 N·m
Technical Specs Note For Demagnetisation Current
ÏR = 20ºC
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Current
ÏR = 20ºC
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Starting Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Current
0.66 A
Technical Specs No Load Speed
4800 rpm
Technical Specs Optional Feedback Integrated
4096 cycles/rev
Technical Specs Peak Power
1150 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
233 g/cm²
Technical Specs Stall Torque
3.9 N·m
Technical Specs Starting Current
180 A
Technical Specs Terminal Inductance
1.2 mH
Technical Specs Terminal Resistance
0.22 Ω
Technical Specs Torque Constant
0.11 N·mA-1
Technical Specs Weight Of Motor
1.6 kg
