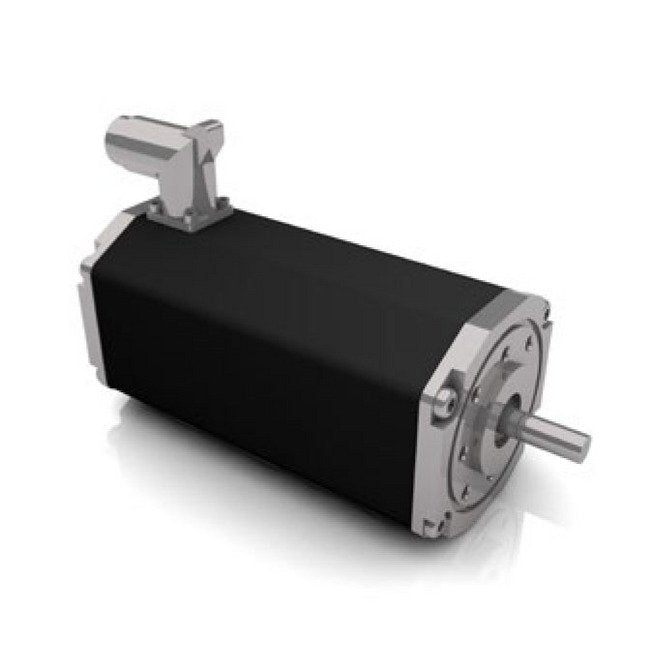

Dunkermotoren BG Series Brushless DC Motor
Dunkermotoren BG Series Brushless DC Motor
SKU:BGS-bdc627
Highly dynamic EC motor with neodymium magnets, hall sensors, and high-resolution encoders for precise control and reliability.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Dunkermotoren BG Series Brushless DC Motor
$599.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series Brushless DC Motor
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series Brushless DC Motor is a high-performance 3-phase EC motor with advanced features such as 10-pole neodymium magnets, hall sensors for rotor position detection, and high-resolution encoders. This motor offers exceptional reliability, efficiency, and dynamic acceleration, making it ideal for applications requiring precise control and high power output. With a robust design, low maintenance requirements, and compliance with industry standards, the Dunkermotoren BG Series motor is a top choice for both consumer and institutional buyers.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsVibration resistanceEPLAN Data Portal
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
275 W
Technical Specs Feedback Integrated
30 cycles/rev | 4096 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
616 W
Technical Specs Maximum Torque
2.92 N·m
Technical Specs Nominal Current
2.50 A
Technical Specs Nominal Direct Current Dc Voltage
110 V
Technical Specs Nominal Output Power
239 W
Technical Specs Nominal Speed
3290 rpm
Technical Specs Nominal Torque
0.693 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
4030 rpm
Technical Specs Peak Power
730 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
129 g/cm²
Technical Specs Torque Constant
0.296 N·mA-1
Technical Specs Weight Of Motor
1.43 kg
