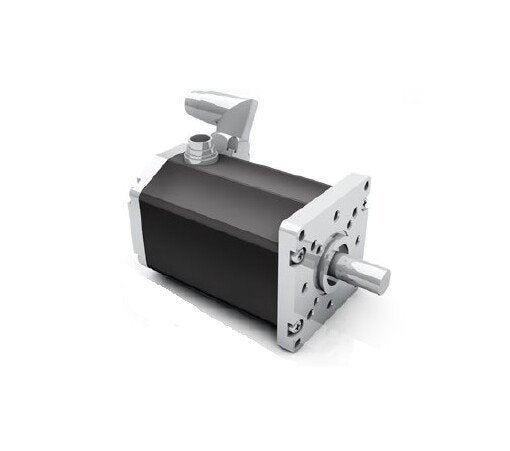

Dunkermotoren BG Series Brushless DC Motor
Dunkermotoren BG Series Brushless DC Motor
SKU:BGS-ff49ba
Powerful Dunkermotoren BG Series Brushless DC Motor with Hall sensors for optimized performance in a variety of applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Dunkermotoren BG Series Brushless DC Motor
$299.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series Brushless DC Motor
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series Brushless DC Motors are renowned for their exceptional performance and durability. With integrated Hall sensors for precise rotor position detection, these motors offer high efficiency, dynamic acceleration, and a wide speed range. Compliant with Ingress Protection (IP65) standards and industry certifications such as China Quality Certification (CQC) and Underwriters Laboratories (UL), these motors are suitable for diverse applications requiring reliability and longevity.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsPremium efficiencyVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
550 W
Technical Specs Demagnetisation Current
⥠4.6 A
Technical Specs Feedback Integrated
24 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
445 W
Technical Specs Maximum Torque
2.5 N·m
Technical Specs Nominal Current
0.86 A
Technical Specs Nominal Direct Current Dc Voltage
325 V
Technical Specs Nominal Output Power
220 W
Technical Specs Nominal Speed
3400 rpm
Technical Specs Nominal Torque
0.62 N·m
Technical Specs Note For Demagnetisation Current
ÏR = 20ºC
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Current
ÏR = 20ºC
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Starting Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Current
0.08 A
Technical Specs No Load Speed
4650 rpm
Technical Specs Optional Feedback Integrated
4096 cycles/rev
Technical Specs Peak Power
1150 W
Technical Specs Product Availability
Standard Product
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
233 g/cm²
Technical Specs Stall Torque
4.5 N·m
Technical Specs Starting Current
19 A
Technical Specs Terminal Inductance
85 mH
Technical Specs Terminal Resistance
15.2 Ω
Technical Specs Torque Constant
0.90 N·mA-1
Technical Specs Weight Of Motor
1.6 kg
