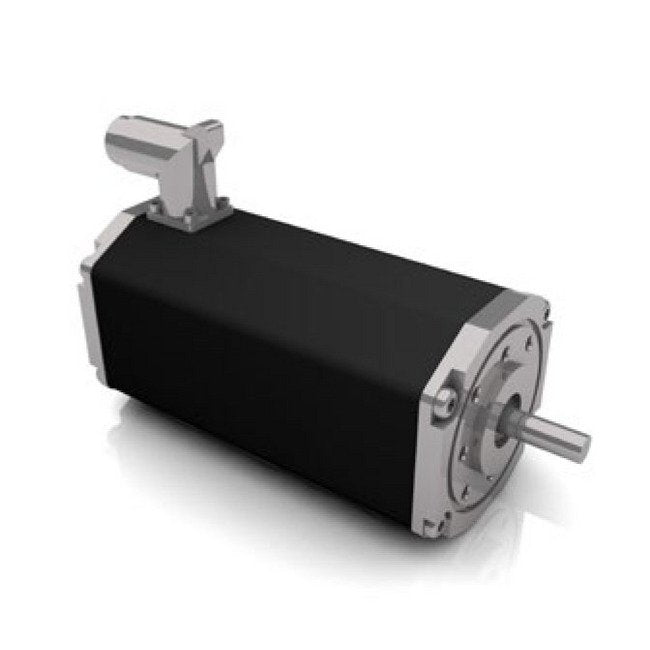

The Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors is a high-performance motor designed for precision applications. With a 10.8 Ampere nominal current and 219 Watt nominal output power, this motor offers exceptional efficiency, dynamic acceleration, and robust control characteristics. Featuring neodymium magnets, IP65 protection class, and compliance with industry standards like UL, these motors ensure a long lifetime, high overload capability, and maintenance-free operation. Ideal for use in modular systems with control electronics, gearboxes, brakes, and encoders, the Dunkermotoren BG Series provides a flexible and market-oriented solution for various institutional and industrial needs.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsVibration resistanceEPLAN Data Portal
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
275 W
Technical Specs Feedback Integrated
30 cycles/rev | 4096 cycles/rev
Technical Specs Industry Standardscertifications
Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
508 W
Technical Specs Maximum Torque
2.92 N·m
Technical Specs Nominal Current
10.8 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Nominal Output Power
219 W
Technical Specs Nominal Speed
3200 rpm
Technical Specs Nominal Torque
0.653 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
3940 rpm
Technical Specs Peak Power
730 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
129 g/cm²
Technical Specs Torque Constant
0.066 N·mA-1
Technical Specs Weight Of Motor
1.43 kg
