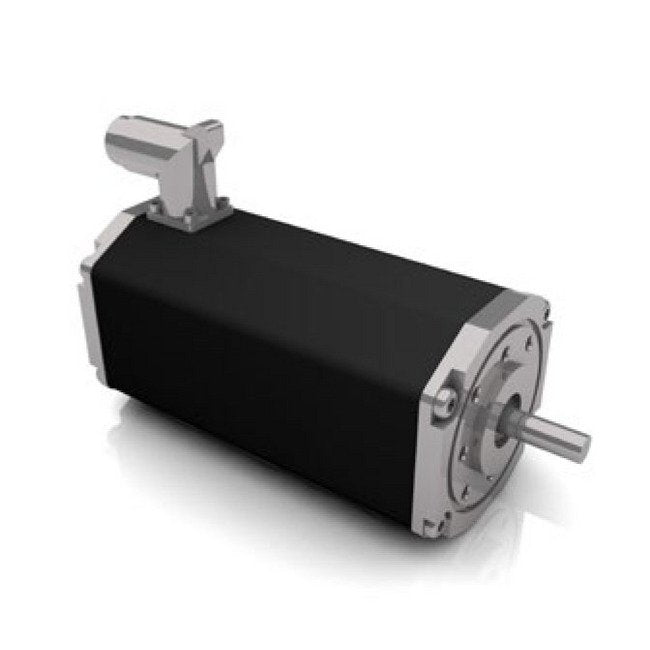

Dunkermotoren BG Series Brushless DC Motor
Dunkermotoren BG Series Brushless DC Motor
SKU:BGS-37a44a
Highly efficient BG Series Brushless DC Motor with 224W Output Power, IP65 protection, and neodymium magnets for dynamic acceleration.
Regular price
$389.99
Regular price
Sale price
$389.99
Unit price
per
Initiate Order
Dunkermotoren BG Series Brushless DC Motor
$389.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series Brushless DC Motor
$389.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series 5.5A Brushless DC Motor with 224W Output Power is a top-tier solution for institutions requiring high efficiency, dynamic acceleration, and compliance with IP65 protection standards. Featuring neodymium magnets, this motor ensures a long lifetime, wide speed range, and maintenance-free operation. With high overload capability and robust design, it offers reliability and durability in various applications while meeting China Quality Certification and UL standards.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsVibration resistanceEPLAN Data Portal
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
275 W
Technical Specs Feedback Integrated
30 cycles/rev | 4096 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
531 W
Technical Specs Maximum Torque
2.92 N·m
Technical Specs Nominal Current
5.5 A
Technical Specs Nominal Direct Current Dc Voltage
48 V
Technical Specs Nominal Output Power
224 W
Technical Specs Nominal Speed
3200 rpm
Technical Specs Nominal Torque
0.667 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
3940 rpm
Technical Specs Peak Power
730 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
129 g/cm²
Technical Specs Torque Constant
0.132 N·mA-1
Technical Specs Weight Of Motor
1.43 kg
