Dunkermotoren BG Series Brushless DC Motor
Dunkermotoren BG Series Brushless DC Motor
SKU:BGS-28965e
High-performance brushless DC motor with integrated commutation, offering efficiency, dynamic acceleration, and wide speed range.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Dunkermotoren BG Series Brushless DC Motor
$189.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series Brushless DC Motor
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

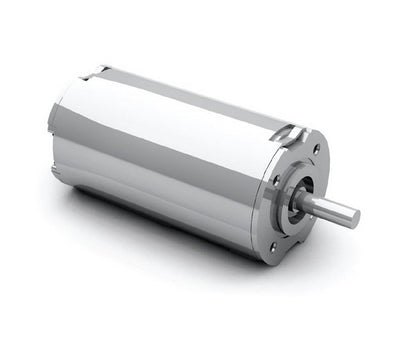

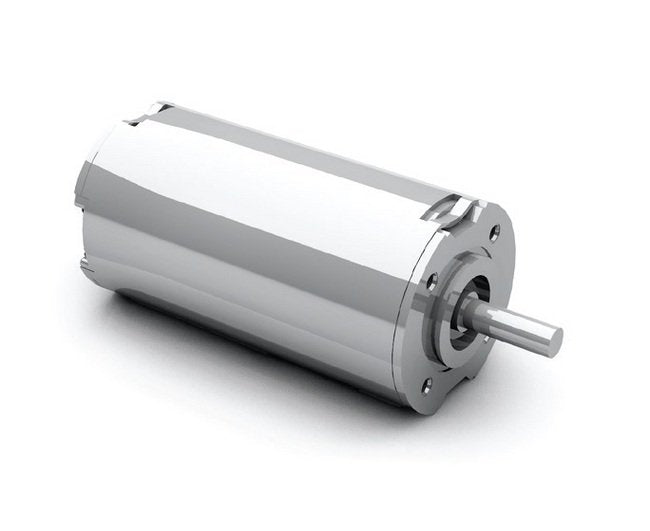

The Dunkermotoren BG Series Brushless DC Motor is a high-performance 3-phase motor with integrated commutation, ideal for applications requiring precise speed control and dynamic acceleration. With a nominal power output of 60W and peak power of 214W, this motor offers top efficiency and a wide speed range. Designed for durability and low maintenance, it features Neodymium magnets and boasts premium efficiency. The motor's robust construction, compliance with CE standards, and ability to be integrated into modular systems make it a versatile and reliable choice for both consumer and institutional buyers.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.Alternatively, these motors are also available with integrated speed and positioning electronics (see dMove and dPro)Particularly smooth running is the motor BGA 22No cogging torque/ coreless designLow noise levelThis motor is on request available in different voltage versions
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsSpeed set input (6-wire version)Bipolar (3-wire version)Block commutationDigital inputsDigital outputsAnalog inputsPremium efficiencyVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
70 W
Technical Specs Feedback Integrated
24 cycles/rev
Technical Specs Industry Standardscertifications
European Conformity (CE)
Technical Specs Maximum Output Power
105 W
Technical Specs Maximum Torque
0.459 N·m
Technical Specs Nominal Current
6.5 A
Technical Specs Nominal Direct Current Dc Voltage
12 V
Technical Specs Nominal Output Power
60 W
Technical Specs Nominal Speed
3650 rpm
Technical Specs Nominal Torque
0.152 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
4200 rpm
Technical Specs Peak Current
14.25 A
Technical Specs Peak Power
214 W
Technical Specs Product Availability
Standard Product
Technical Specs Protection Class
Ingress Protection (IP40)
Technical Specs Rotor Inertia
44 g/cm²
Technical Specs Torque Constant
0.029 N·mA-1
Technical Specs Weight Of Motor
0.47 kg
