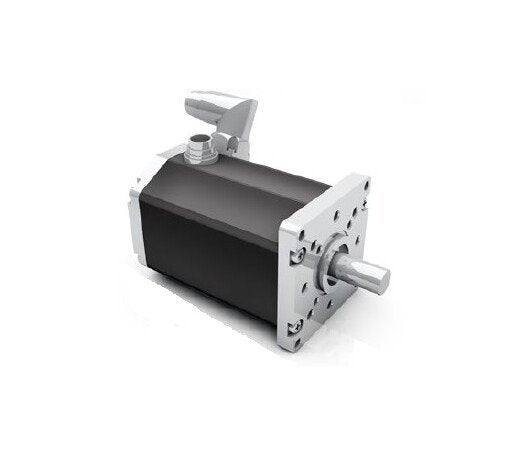

The Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors is an exceptional choice for demanding applications requiring high efficiency and dynamic performance. With a nominal current of 1.5 Ampere and a nominal output power of 411 Watts, this motor offers a wide speed range, robust design, and maintenance-free operation. Designed for longevity and optimized control characteristics, it features neodymium magnets, premium efficiency, and high overload capability. Compliant with industry standards like China Quality Certification (CQC) and Underwriters Laboratories (UL), this motor is a reliable solution for institutional and government buyers.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsPremium efficiencyVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
550 W
Technical Specs Demagnetisation Current
⥠6.9 A
Technical Specs Feedback Integrated
24 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
870 W
Technical Specs Maximum Torque
5 N·m
Technical Specs Nominal Current
1.5 A
Technical Specs Nominal Direct Current Dc Voltage
325 V
Technical Specs Nominal Output Power
411 W
Technical Specs Nominal Speed
3570 rpm
Technical Specs Nominal Torque
1.10 N·m
Technical Specs Note For Demagnetisation Current
ÏR = 20ºC
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Current
ÏR = 20ºC
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Starting Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Current
0.13 A
Technical Specs No Load Speed
4470 rpm
Technical Specs Optional Feedback Integrated
4096 cycles/rev
Technical Specs Peak Power
1150 W
Technical Specs Product Availability
Standard Product
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
437 g/cm²
Technical Specs Stall Torque
9.3 N·m
Technical Specs Starting Current
51 A
Technical Specs Terminal Inductance
40.3 mH
Technical Specs Terminal Resistance
6.4 Ω
Technical Specs Torque Constant
0.80 N·mA-1
Technical Specs Weight Of Motor
2.2 kg
