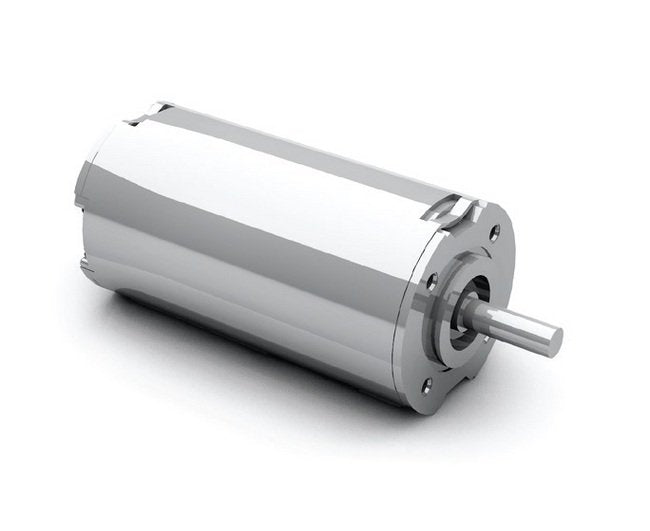

Dunkermotoren BG Series Brushless DC Motor
Dunkermotoren BG Series Brushless DC Motor
SKU:BGS-07121b
Highly dynamic and efficient BG Series Brushless DC Motor with integrated commutation for versatile applications.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Dunkermotoren BG Series Brushless DC Motor
$399.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series Brushless DC Motor
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series Brushless DC Motor is a highly dynamic 3-phase motor with integrated commutation. With a nominal current of 2.3A and a nominal output power of 45W, it offers optimized control characteristics, wide speed range, and high overload capability. Compliant with European Conformity (CE) standards, this motor is maintenance-free, robust, and features neodymium magnets for efficiency and longevity. Perfect for applications requiring adaptability and market-oriented solutions.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.Alternatively, these motors are also available with integrated speed and positioning electronics (see dMove and dPro)Particularly smooth running is the motor BGA 22No cogging torque/ coreless designLow noise levelThis motor is on request available in different voltage versions
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsSpeed set input (6-wire version)Bipolar (3-wire version)Block commutationDigital inputsDigital outputsAnalog inputsPremium efficiencyVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
70 W
Technical Specs Feedback Integrated
24 cycles/rev
Technical Specs Industry Standardscertifications
European Conformity (CE)
Technical Specs Maximum Output Power
103 W
Technical Specs Maximum Torque
0.615 N·m
Technical Specs Nominal Current
2.3 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Nominal Output Power
45 W
Technical Specs Nominal Speed
3540 rpm
Technical Specs Nominal Torque
0.118 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
4300 rpm
Technical Specs Peak Current
9.75 A
Technical Specs Peak Power
214 W
Technical Specs Product Availability
Standard Product
Technical Specs Protection Class
Ingress Protection (IP40)
Technical Specs Rotor Inertia
24 g/cm²
Technical Specs Torque Constant
0.058 N·mA-1
Technical Specs Weight Of Motor
0.36 kg
