Dunkermotoren BG Series Brushless DC Motor
Dunkermotoren BG Series Brushless DC Motor
SKU:BGS-89d833
Highly efficient and dynamic Dunkermotoren BG Series Brushless DC Motor for reliable performance in institutional applications.
Regular price
$259.99
Regular price
Sale price
$259.99
Unit price
per
Initiate Order
Dunkermotoren BG Series Brushless DC Motor
$259.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series Brushless DC Motor
$259.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

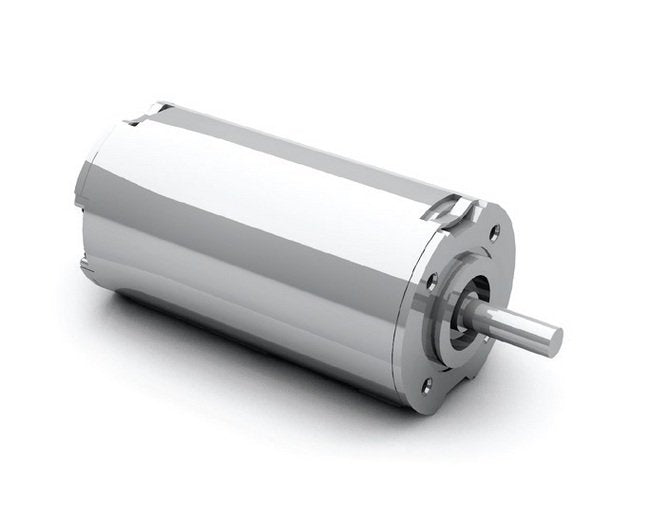

The Dunkermotoren BG Series Brushless DC Motor is a highly dynamic 3-phase motor featuring exceptional efficiency and a wide speed range. With a nominal current of 4.7 A and a nominal output power of 43 W, this motor offers optimized control characteristics and high power density. Built to last, it boasts maintenance-free operation, robust design, and low moment of inertia. Perfect for institutional and government buyers requiring reliable and high-performance motors.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.Alternatively, these motors are also available with integrated speed and positioning electronics (see dMove and dPro)Particularly smooth running is the motor BGA 22No cogging torque/ coreless designLow noise levelThis motor is on request available in different voltage versions
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsSpeed set input (6-wire version)Bipolar (3-wire version)Block commutationDigital inputsDigital outputsAnalog inputsPremium efficiencyVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
70 W
Technical Specs Feedback Integrated
24 cycles/rev
Technical Specs Industry Standardscertifications
European Conformity (CE)
Technical Specs Maximum Output Power
85 W
Technical Specs Maximum Torque
0.432 N·m
Technical Specs Nominal Current
4.7 A
Technical Specs Nominal Direct Current Dc Voltage
12 V
Technical Specs Nominal Output Power
43 W
Technical Specs Nominal Speed
3540 rpm
Technical Specs Nominal Torque
0.113 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
4400 rpm
Technical Specs Peak Current
14.25 A
Technical Specs Peak Power
214 W
Technical Specs Product Availability
Standard Product
Technical Specs Protection Class
Ingress Protection (IP40)
Technical Specs Rotor Inertia
24 g/cm²
Technical Specs Torque Constant
0.028 N·mA-1
Technical Specs Weight Of Motor
0.36 kg
