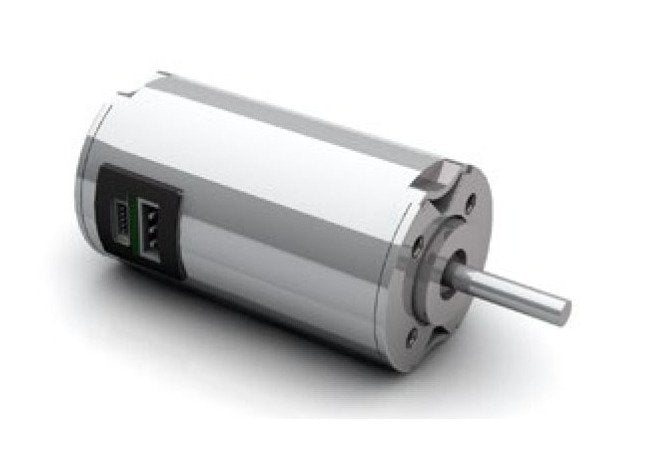

Dunkermotoren BG Series Brushless DC Motor
Dunkermotoren BG Series Brushless DC Motor
SKU:BGS-553a59
Highly dynamic Dunkermotoren BG Series Brushless DC Motor with 20W continuous power and UL certification. Efficient, reliable, and maintenance-free.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
Dunkermotoren BG Series Brushless DC Motor
$199.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series Brushless DC Motor
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unmatched performance with the Dunkermotoren BG Series Brushless DC Motor. This highly dynamic 3-phase motor boasts a continuous power of 20W and peak power of 30.5W, ensuring efficient operations. With features like integrated commutation electronics, selectable rotational direction control, and compatibility with encoders and gearboxes, this motor offers flexibility and reliability. Meeting industry standards like Underwriters Laboratories (UL), it guarantees high efficiency, robust design, and maintenance-free operation, making it ideal for industrial applications.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.Alternatively, these motors are also available with integrated speed and positioning electronics (see dMove and dPro)Particularly smooth running is the motor BGA 22No cogging torque/ coreless designLow noise levelThis motor is on request available in different voltage versions
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsSpeed set input (6-wire version)Bipolar (3-wire version)Block commutationDigital inputsDigital outputsAnalog inputsPremium efficiencyVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
20 W
Technical Specs Feedback Integrated
24 cycles/rev
Technical Specs Industry Standardscertifications
Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
16.1 W
Technical Specs Nominal Current
1.66 A
Technical Specs Nominal Direct Current Dc Voltage
12 V
Technical Specs Nominal Output Power
11.1 W
Technical Specs Nominal Speed
4080 rpm
Technical Specs Nominal Torque
0.026 N·m
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
6070 rpm
Technical Specs Peak Current
4.2 A
Technical Specs Peak Power
30.5 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP40)
Technical Specs Rotor Inertia
5.9 g/cm²
Technical Specs Stall Torque
0.103 N·m
Technical Specs Torque Constant
0.0183 N·mA-1
Technical Specs Weight Of Motor
0.15 kg
