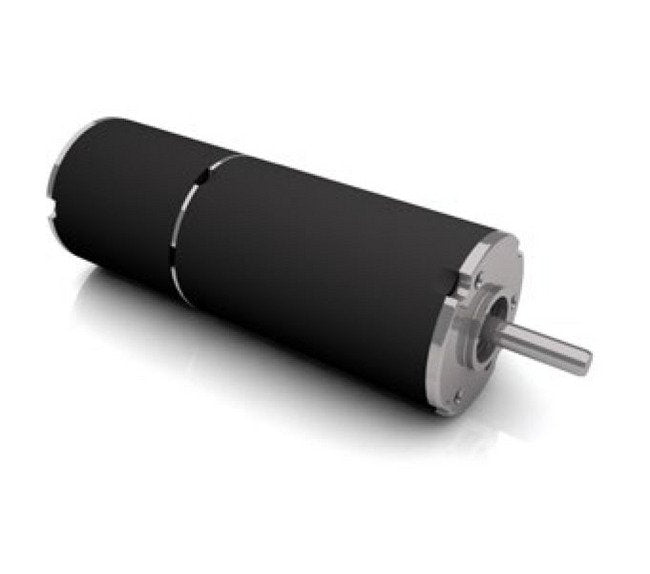

The Dunkermotoren BG Series Brushless Direct Current (DC) Motor combines rare-earth magnets with integrated commutation electronics, offering high power density, overload capability, and weight-optimized design. With a nominal current of 0.94 A and output power of 5.6 W, this motor provides efficient performance across a wide speed range. Features include neodymium magnets, premium efficiency, robust design, and maintenance-free operation. Compliant with Ingress Protection (IP40) and UL standards, this motor ensures reliability and longevity in various applications.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.Alternatively, these motors are also available with integrated speed and positioning electronics (see dMove and dPro)Particularly smooth running is the motor BGA 22No cogging torque/ coreless designLow noise levelThis motor is on request available in different voltage versions
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsSpeed set input (6-wire version)Bipolar (3-wire version)Block commutationDigital inputsDigital outputsAnalog inputsPremium efficiencyVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
24 W
Technical Specs Feedback Integrated
18 cycles/rev
Technical Specs Industry Standardscertifications
Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
30 W
Technical Specs Nominal Current
0.94 A
Technical Specs Nominal Direct Current Dc Voltage
12 V
Technical Specs Nominal Output Power
5.60 W
Technical Specs Nominal Speed
2950 rpm
Technical Specs Nominal Torque
0.0182 N·m
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Torque Constant
Only for hall version
Technical Specs No Load Speed
5330 rpm
Technical Specs Peak Current
8 A
Technical Specs Peak Power
236 W
Technical Specs Product Availability
Standard Product
Technical Specs Protection Class
Ingress Protection (IP40)
Technical Specs Rotor Inertia
15 g/cm²
Technical Specs Stall Torque
0.054 N·m
Technical Specs Torque Constant
0.0223 N·mA-1
Technical Specs Weight Of Motor
0.065 kg
