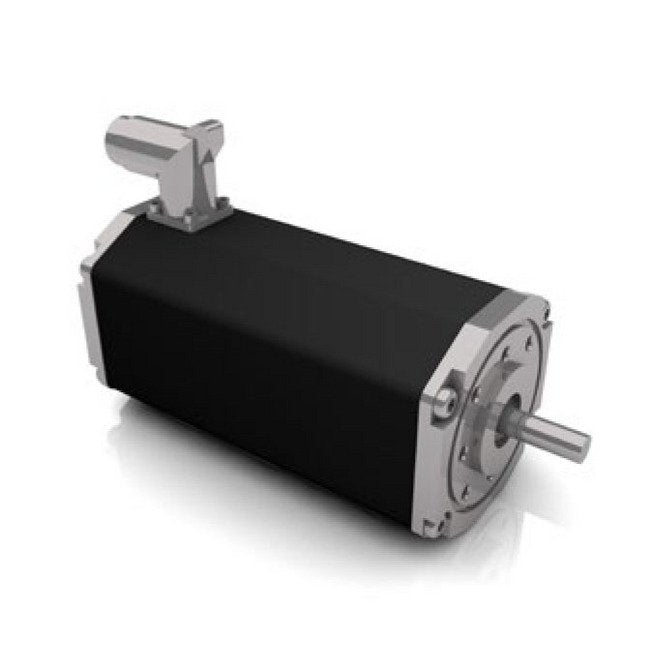

Dunkermotoren BG Series Brushless DC Motor - 4.6A, 236W
Dunkermotoren BG Series Brushless DC Motor - 4.6A, 236W
SKU:BGS-b18555
High-performance Dunkermotoren BG Series DC Motor - Ideal for dynamic acceleration, precise control, and reliability. IP65, CQC, UL certified.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Dunkermotoren BG Series Brushless DC Motor - 4.6A, 236W
$299.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series Brushless DC Motor - 4.6A, 236W
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors offers exceptional performance with a nominal current of 4.6A and nominal output power of 236W. Featuring neodymium magnets and high-resolution encoders, this motor delivers precise rotor position detection and dynamic acceleration. With an IP65 protection class, compliance with China Quality Certification (CQC) and Underwriters Laboratories (UL), and industry-standard attributes, this motor ensures reliability and longevity in diverse applications.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsVibration resistanceEPLAN Data Portal
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
275 W
Technical Specs Feedback Integrated
30 cycles/rev | 4096 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
608 W
Technical Specs Maximum Torque
2.92 N·m
Technical Specs Nominal Current
4.6 A
Technical Specs Nominal Direct Current Dc Voltage
60 V
Technical Specs Nominal Output Power
236 W
Technical Specs Nominal Speed
3360 rpm
Technical Specs Nominal Torque
0.67 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
4100 rpm
Technical Specs Peak Power
730 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
129 g/cm²
Technical Specs Torque Constant
0.159 N·mA-1
Technical Specs Weight Of Motor
1.43 kg
