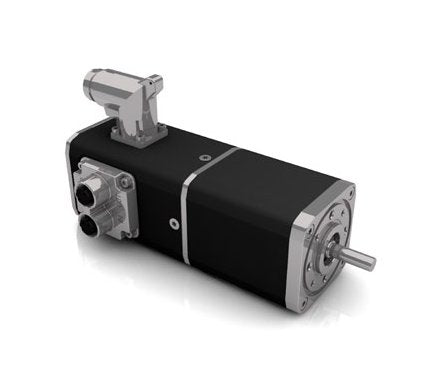

Dunkermotoren BG Series Brushless DC Motor
Dunkermotoren BG Series Brushless DC Motor
SKU:BGS-4f365e
Experience top-tier performance with the Dunkermotoren BG Series Brushless DC Motor - ideal for precise control and reliability.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Dunkermotoren BG Series Brushless DC Motor
$799.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series Brushless DC Motor
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series 25.7A Brushless DC Motor with Integrated Control Electronics offers high-performance operation with features like safe torque off and various communication options including PROFINET, EtherCAT, and EtherNet/IP. With a nominal output power of 1127W, this motor provides reliable speed, positioning, and current control operations. It meets industry standards like China Quality Certification (CQC), European Conformity (CE), and Underwriters Laboratories (UL), making it suitable for a range of institutional and government applications.
Product Specifications
Features Features
Speed- positioning- and current control operationCan be combined with high resolution encoders, brakes and gearboxes in the modular systemControl through bus or I/Os or stand-alone operationHigh IP protection against water or contaminationInherent overload protectionProgrammable with Motion CodeMonitoring with Smart DiagnosticsProfinet version availableEtherCAT version availableEtherNet/IP version availableIO modeSpeed modeCurrent modePositioningDigital inputs configurableAnalog inputsDigital outputsBrake outputProgrammableService interfaceOscilloscope softwareSmart DiagnosticsDigital labelOperating hoursHigh efficiencySinusoidal vector controlInterpolationSSI version availableSafe torque off versionS-RampeOperating hours
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
1100 W
Technical Specs Direct Current Dc Voltage Range
5 to 66 V
Technical Specs Feedback Integrated
4096 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
3377 W
Technical Specs Maximum Torque
10.37 N·m
Technical Specs Nominal Current
25.7 A
Technical Specs Nominal Direct Current Dc Voltage
48 V
Technical Specs Nominal Output Power
1127 W
Technical Specs Nominal Speed
3870 rpm
Technical Specs Nominal Torque
2.78 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Peak Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
3790 rpm
Technical Specs Peak Current
82 A
Technical Specs Peak Power
4400 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
1890 g/cm²
Technical Specs Torque Constant
0.117 N·mA-1
Technical Specs Weight Of Motor
5.1 kg
