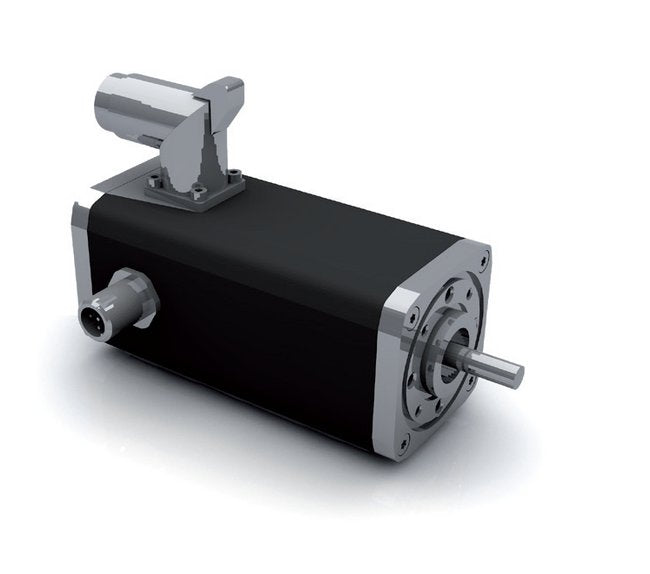

The Dunkermotoren BG Series 3.9 Ampere Brushless DC Motor with Integrated Control Electronics is a cutting-edge solution for precise motion control applications. With a nominal output power of 71.9W and a nominal speed of 4580 rpm, this motor offers superior performance and efficiency. Featuring speed, positioning, and current control options, it can be seamlessly integrated with high-resolution encoders, brakes, and gearboxes. With IP65 protection and inherent overload protection, this motor ensures reliability in various environments. Programmable with Motion Code and equipped with Smart Diagnostics, it provides advanced monitoring and maintenance capabilities. Certified with CE, UL, and CQC, this motor meets stringent quality and safety standards, making it ideal for institutional and industrial applications.
Product Specifications
Features Features
Speed- positioning- and current control operationCan be combined with high resolution encoders, brakes and gearboxes in the modular systemControl through bus or I/Os or stand-alone operationHigh IP protection against water or contaminationInherent overload protectionProgrammable with Motion CodeMonitoring with Smart DiagnosticsCANopen version availableRS485 version availableIO modeSpeed modeCurrent modePositioningBlock commutationDigital inputs configurableAnalog inputsDigital outputsBrake outputProgrammableService interfaceOscilloscope softwareSmart DiagnosticsDigital labelBallast circuitHigh efficiencyOperating hoursVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
109.5 W
Technical Specs Direct Current Dc Voltage Range
2 to 58 V
Technical Specs Feedback Integrated
24 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Nominal Current
3.9 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Nominal Output Power
71.9 W
Technical Specs Nominal Speed
4580 rpm
Technical Specs Nominal Torque
0.15 N·m
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs No Load Speed
5230 rpm
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
24 g/cm²
Technical Specs Weight Of Motor
0.63 kg
