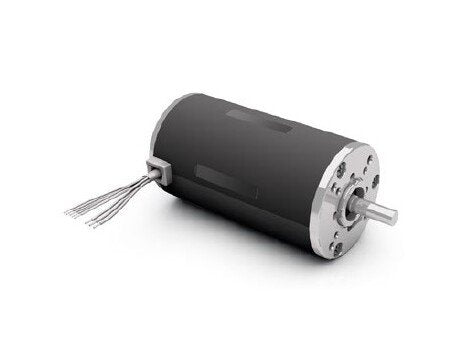

Dunkermotoren BG Series Brushless DC Motor 6.8A 125W
Dunkermotoren BG Series Brushless DC Motor 6.8A 125W
SKU:BGS-bd68ce
High-performance BG Series Brushless DC Motor with integrated hall sensors for precise control. Maintenance-free and compliant with CQC and UL standards.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Dunkermotoren BG Series Brushless DC Motor 6.8A 125W
$299.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series Brushless DC Motor 6.8A 125W
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series Brushless DC Motor offers exceptional performance with integrated hall sensors for precise rotor position detection. With a nominal output power of 125W and continuous power capabilities, this motor promises high efficiency, dynamic acceleration, and a wide speed range. Designed with neodymium magnets and complying with industry standards like China Quality Certification (CQC) and Underwriters Laboratories (UL), it ensures a maintenance-free, robust, and reliable solution for various applications.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsPremium efficiencyVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
125 W
Technical Specs Demagnetisation Current
⥠93 A
Technical Specs Feedback Integrated
12 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
280 W
Technical Specs Maximum Torque
3.07 N·m
Technical Specs Nominal Current
6.8 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Nominal Output Power
125 W
Technical Specs Nominal Speed
3350 rpm
Technical Specs Nominal Torque
0.36 N·m
Technical Specs Note For Demagnetisation Current
ÏR = 20ºC
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Current
ÏR = 20ºC
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Starting Current
ÏR = 20ºC
Technical Specs Note For Terminal Inductance
Only for hall version
Technical Specs Note For Terminal Resistance
Only for hall version
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Current
0.800 A
Technical Specs No Load Speed
3865 rpm
Technical Specs Peak Power
274 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP40)
Technical Specs Rotor Inertia
353 g/cm²
Technical Specs Stall Torque
3.07 N·m
Technical Specs Starting Current
56 A
Technical Specs Terminal Inductance
0.68 mH
Technical Specs Terminal Resistance
0.34 Ω
Technical Specs Torque Constant
0.067 N·mA-1
Technical Specs Weight Of Motor
1.65 kg
